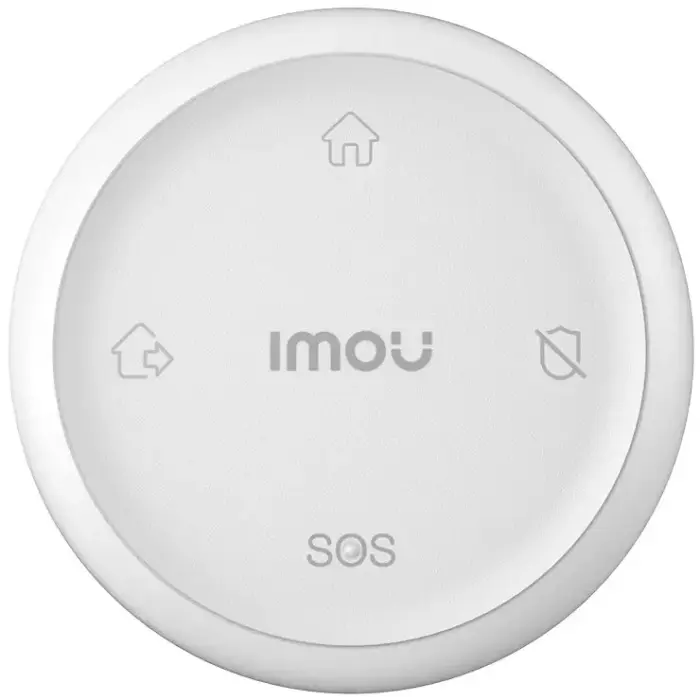

Imou smart remote control ZB1

Imou ZB1

The Imou ZB1 Zigbee remote control enables quick switching between three gateway security modes: home, away, and disarm.

The remote control is designed for convenient wireless management of your security system. Thanks to the Zigbee wireless protocol operating at 2.4 GHz, it communicates with the gateway at a range of up to 130 m. The SOS button allows you to trigger an emergency alarm with a single press, instantly sending a notification to the mobile app.

The remote control supports integration with other smart home devices, such as IP cameras or smart bulbs, enabling scene automation. The low-power design ensures battery operation for more than 2 years, and the device automatically sends a notification when the battery is running low.

• One-press switching between three gateway security modes: home, away, and disarm.
• SOS button for instant emergency alarm activation with a push notification to the mobile app.
• Wireless communication via the Zigbee protocol at 2.4 GHz with a range of up to 130 m.
• Support for integration with smart home devices (IP cameras, smart bulbs) and scene automation.
• Low-power design with a battery life of more than 2 years and automatic low battery alerts.
• Compact design with the option to mount using double-sided adhesive tape anywhere you need.
• Operating voltage of DC 3 V and standby current consumption below 10 µA for minimal energy use.

Installation and Placement
The remote control can be placed anywhere thanks to the included mounting accessories. The included 3M double-sided adhesive tape allows for quick installation without drilling on any flat surface. The included metal plate serves as a magnetic base for an alternative mounting method.

Package Contents
Remote control, 3M double-sided adhesive tape, metal plate, quick start guide.

BASIC SPECIFICATIONS

Accessory Type: smart home remote control
Operating Voltage: DC 3 V
Operating Current: < 30 mA
Standby Current: < 10 µA
Low Battery Voltage Alarm: 2.75 ± 0.05 V
Battery Life: > 2 years
Wireless Protocol: Zigbee
Transmission Frequency: 2.4 GHz
Transmission Power: 6 dB/m
Communication Range: 130 m
Operating Temperature: -10 to +50 °C
Dimensions: 62.05 × 62.05 × 13.9 mm
Weight: 48 g
