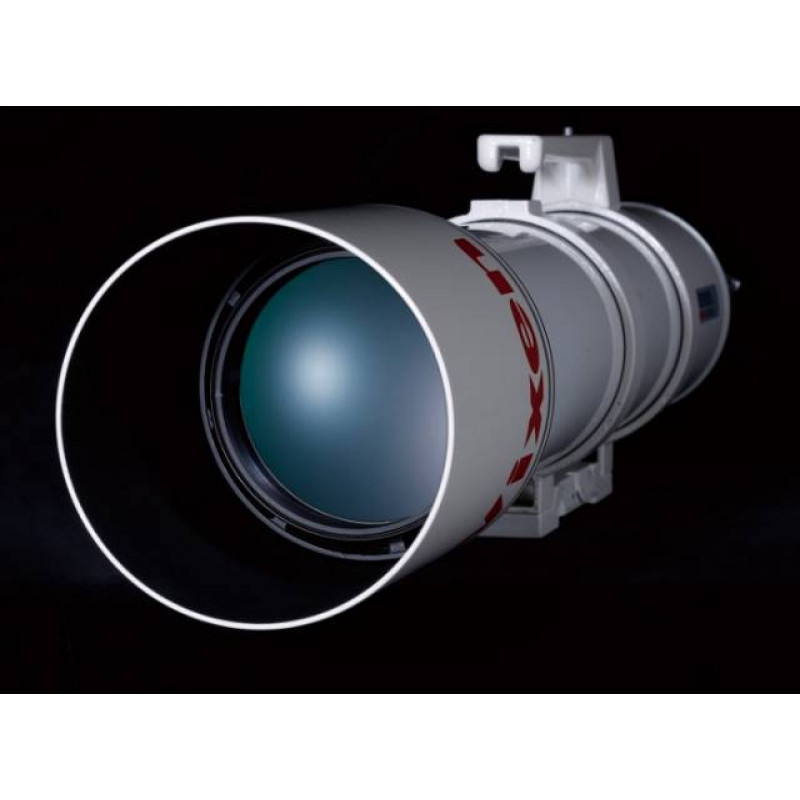

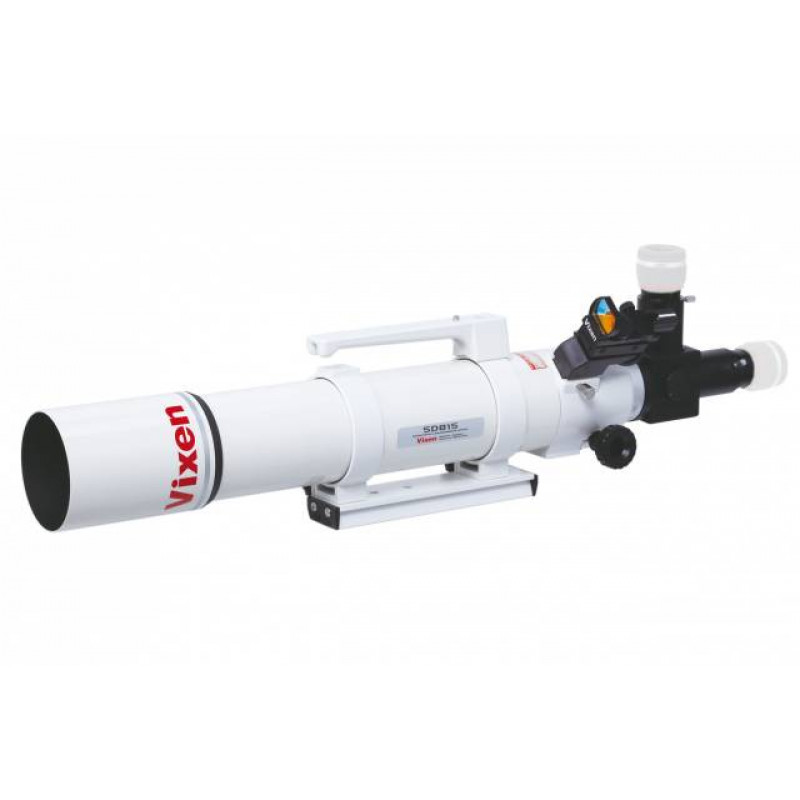

Vixen SD81S apohromatiskais refraktors

A new 81 mm apochromatic refractor with high performance Super ED glass (= SD).
The FPL53 glass reproduces an extremely clear and sharp image through an extremely high level of elimination of residual color defects .
The SD glass is designed in such a way that it brings all the rays violet, red, blue, yellow and green together very precisely on the same plane.
The special lens material reduces the chromatic aberrationabout all colors. In combination with the new optional SD Reducer HD Kit or SD Flattener HD, these refractors enable illumination with a 44mm image circle for full format SLR cameras.
The advantage of these SD refractors lies in their short length and low weight .
The ED81SII, ED103S, ED115S refractors were originally developed for the visual observer or photographer with APS-C cameras. However, the new SD series has also been optimized for the use of full-frame cameras by replacing new inner panels . The large focuser enables heavy cameras to be attached
without tilting.
The included folding mirror allows comfortable observation, even in unfavorable observation situations, and also offers a T2 thread for connecting a DSLR camera .

PROPERTIES

• Objective lenses: D = 81mm, multi-coated
• Focal length: 625 mm (f7.7)
• Resolution and limit size: 1.43 arc seconds; 11.3
• Light gathering power: 134x
• Dimensions and weight: 90mm dia x 585mm, 3.6kg
• Finder scope: XY Red Dot Finder II
• Adapters and connections: adapter thread 60mm and 31.7mm for T-ring, connection 50.8mm and 31.7mm receptacle with flip mirror diagonal folding mirror.
• Photography: primary focus and eyepiece projection

SCOPE OF DELIVERY

• Refractor SD81S telescope
• Pipe clamps
• Flip mirror folding mirror
• Handle
• Dovetail rail
• Red dot finder

Technical data
