Kamera mikroskopam EduPad-WIFI, 5MP, USB2, 8 Zoll Tablet, Euromex

CMEX 5 WiFi camera

Highlights

• 5.0 Mpix CMOS WiFi color USB 2.0 camera
• 1/2.5” sensor, 1280 x 720 pixels images
• ADC 12 bit
• Low signal/noise ratio
• Send H.264 encoded images to WiFi enabled smartphones, computers, and tablets with iOS, Android and Windows systems

Specifications

• Sensor CMOS 1/2.5 inch 5 Mpix
• Pixels 1280 x 720 pixels images
• Scan mode Electronic rolling shutter
• Pixel size 2.2 µm x 2.2 µm
• Filter RGB color filter and IR-cut off filter (380-650 nm)
• Mount C-mount
• Max fps Up to 12frames per second (2592 x 1944 pixels)
• ADC 12 bits
• Sensitivity 0.53 V/lux-sec @ 550 nm
• Exposure Automatic or manual, from 1 ms to 800 ms
• White balance Automatic/manual
• Dynamic range 66.5 db
• S/N max 40.5 db
• Data interface USB 2.0 at 480 Mb/s
• Operation 0 – 50° C, 30-80 % humidity
• Storage temperature -20 to 60° Celsius
• Supplied with 0.45x objective with C-mount, USB 2.0 cable, 30 and 30, 5 mm to 23.2 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), USB charger, CDROM with ImageFocus Alpha software, Android .apk app, carton box
• Compatibility Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations), iOS IPad or IPhone, Android Pad and Phones
• Requirements PC with Intel Core2 2.8 GHz or higher or equivalent. Minimum 2Gb RAM memory, PC with WiFi enabled device with DHCP, iOS Ipad or Pad with Android system or iPhone or SmartPhone with Android
• Power supply With supplied USB charger or through PC USB port
• Housing Aluminium housing 68 x 68 x 45 mm

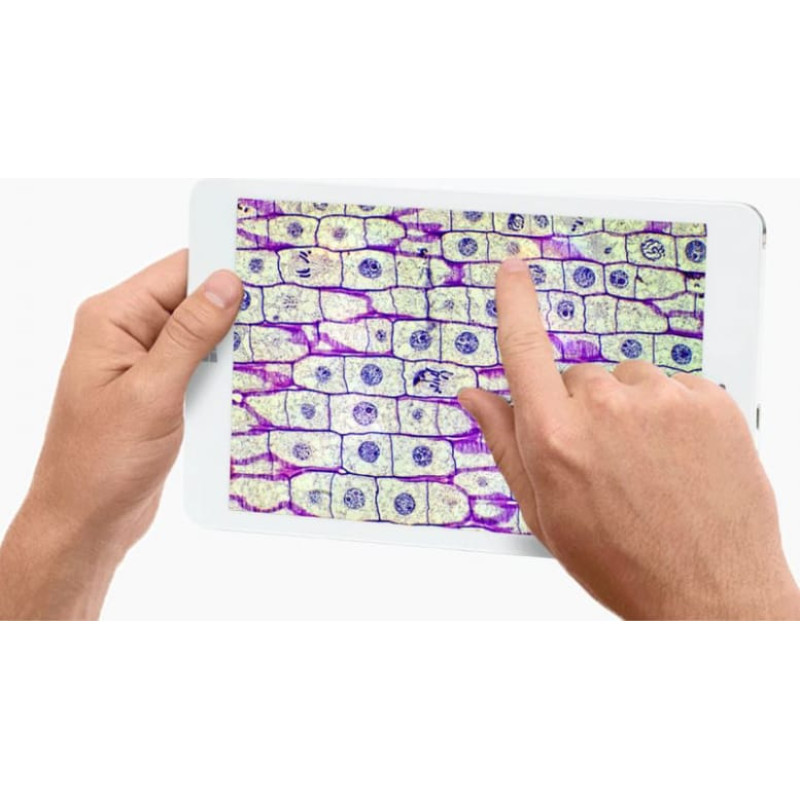

EduPad tablet 8 " EP.1300c with microscope camera

• 8” Tablet with microscope camera

• 1280 x 800 pixels touch screen

• Full Windows 10 Home

• ImageFocus 4 capture software

• ImageFocus Alpha for WiFi-version

• Tablet can be fully detached from camera

TECHNICAL SPECIFICATIONS

• Processor Quad Core 1.33 GHz with HD graphics processor
• Screen 1920 x 1200 touchscreen, 16:10, LED backlight
• Memory 2 GB DDR3 RAM
• Storage 32 GB flash SDD, Micro SD/SDHC cards up to 64 GB
• Webcam Front and rear cameras
• Connectivity USB-C, Wi-Fi 802.11 b/g/n and Bluetooth 4.0
• Audio Stereo with 3.5 mm audio jack and built-in
• microphone and speaker
• Battery Lithium
• Housing approx. 21 x 12 x 9 cm
• Weight approx. 0.4 kg
• System Windows 10 Home
