Ermenrich Ping SM75 Cable Tester With Multimeter

Cable tester with multimeter Ermenrich Ping SM75 is a multifunctional tool for comprehensive diagnostics and determining the condition of telephone lines, computer networks, and electrical equipment. The device is designed for professionals who are engaged in network installation and maintenance in industrial, office, and residential settings.

The tester is used for tracing twisted pair, cable tracing, and determining cable length (up to 200m, with an error of ±3m) and distance to short or open circuits. Ermenrich Ping SM75 stands out from similar devices with its wide range of functions. It allows you to perform a PoE test, determining the type of power supply equipment according to the IEEE 802.3af/at standard. It has NCV (non-contact detection of hazardous voltage) and Port Flash functions, and it is compatible with STP/UTP network cables of 5E/6/6A categories. It also replaces a digital multimeter by measuring voltage (DC and AC), current (DC and AC), resistance, frequency, and capacitance. The measurement results are displayed on the transmitter’s color TFT screen with a 320x240px resolution.

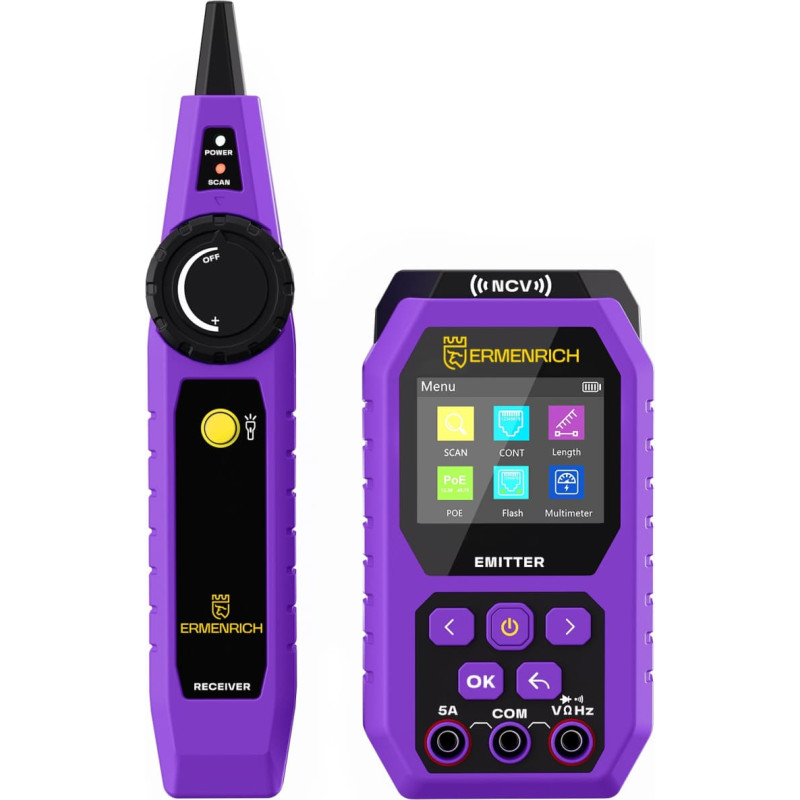

The kit includes a transmitter, a receiver with a headphone port for connecting earbuds (included), an RJ45 port, and test probes for the multimeter. The transmitter is powered by a built-in rechargeable 3.7V battery (charging adapter purchased separately), and the receiver is powered by a 9V battery.

Key features:

• Measuring cable length up to 200m with an error of no more than 3m
• Cable tracing range: 0 to 1000m
• NCV, Port Flash, PoE test, polarity detection functions
• Multimeter: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter
• Quickly determine the distance to open circuits, short circuits, or crossed pairs
• Bright color TFT display for network test results

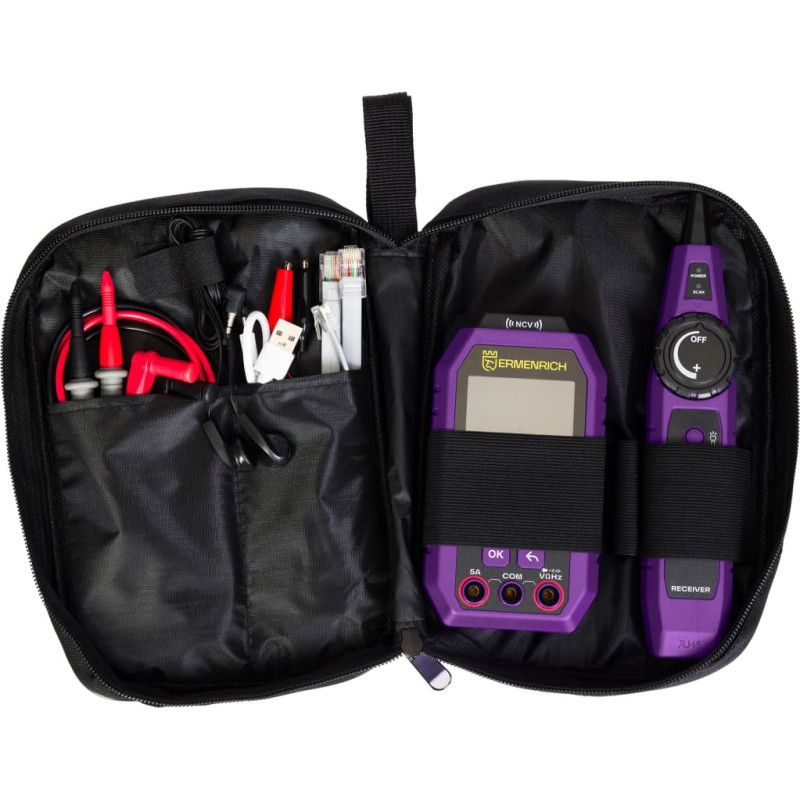

The kit includes:

• Transmitter
• Receiver
• Earbuds
• Probe – 2 pcs.
• Type-C USB cable
• Carry bag
• User manual and warranty card
