The Levenhuk Fatum RS150 Thermo Vision Riflescope is designed for long-distance shooting (up to 3000 meters/9840 feet). The riflescope can detect targets in complex environments – fog, heavy rain, wooded areas, behind a smoke screen, etc. Its performance remains unaffected by light conditions. Everything is clearly visible on a sunny day, on a cloudy day, and at night. The riflescope is waterproof. It is perfect for hunting and would also be a great choice for security purposes and a wide range of tactical tasks.
The riflescope has an optical magnification of 3.3x and you can use the digital zoom (2 or 4 multiples) to get closer. Other features include hot spot detection, a picture-in-picture mode, and color palette selection. You can also adjust its contrast and brightness. All of these features combined enable you to optimally adjust the device, regardless of the observation conditions and your eyesight. The riflescope allows for choosing from a variety of the reticle styles, improving usability even further (10 options available). The color of the reticle can be changed. Another feature is a LEMO connector that is used for connecting external devices, such as a screen that can display an image from the riflescope.
The device is powered by a rechargeable battery and a single charge lasts for 3 hours of continuous operation. The mount type – a Picatinny rail.
Key features:
- 3.3x optical magnification; 2x and 4x digital zoom
- Maximum detection distance – 3000m (9840ft)
- Ten types of the reticle; choice of reticle color
- LEMO connector for external display output
- Power supply – a rechargeable battery with 3 hours of continuous operating time
- Waterproof; Picatinny rail
The kit includes:
- Thermo vision riflescope
- 18650 rechargeable battery
- Battery charger
- Video cable

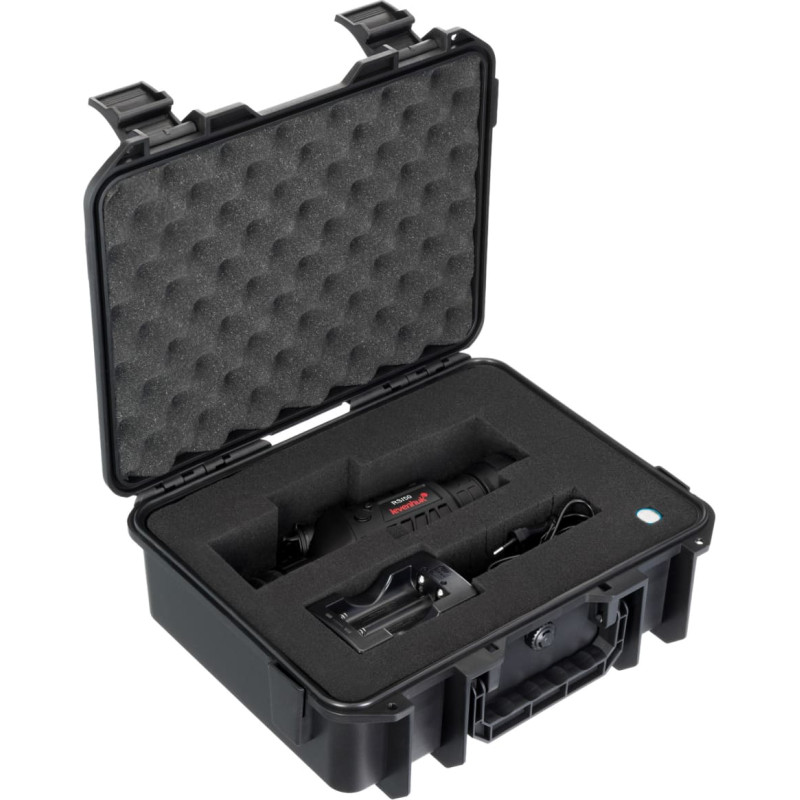

- Case
- User manual and warranty card
| Brand | Levenhuk, Inc., USA | | Warranty, years | 2 | | EAN | 4620137487114 | | Package size (LxWxH), cm | 35x30x16 | | Shipping Weight, kg | 2.4 | | Type of thermo vision device | riflescope | | Detection range | 3000m/9840ft (vehicle, 2.3x2.3m/7.5x7.5ft), 1400m/4600ft (person,1.8x0.5m/5.9x1.6ft) | | Recognition range | 1400m/4600ft (vehicle, 2.3x2.3m/7.5x7.5ft), 700m/2300ft (person, 1.8x0.5m/5.9x1.6ft) | | Microbolometer matrix | uncooled, vanadium oxide | | Resolution of microbolometer matrix, pix | 400x300 | | Pixel size, μm | 17 | | Spectral range, μm | 8–14 | | Frame rate | 50Hz | | Temperature sensitivity (NETD), mK | ≤50 | | Calibration | automatic, shutter (shooter), manual | | Adjustable parameters | brightness (10 levels), contrast (10 levels) | | Color palettes | hot black, hot white, hot blue, hot green, hot red 1, hot red 2, hot red 3 | | Objective lens diameter (aperture), mm | 50.0 | | Aperture ratio | f/1.2 | | Optical magnification | 3.3x | | Digital magnification | 2x/4x | | Field of view (horizontal)x(vertical), ° | 7.5х5.6 | | Focus | manual | | Close focus, m | 10 | | Eye relief, mm | 48 | | Eyepiece diopter adjustment, diopters | ±4 | | Display | OLED, color, 0.39" | | Display resolution, pixels | 1024x768 | | Power supply | 18650 lithium battery | | Battery life, h | 3 | | Body | plastic | | Waterproof | yes | | Degree of moisture/water protection | IP67, complete protection against dust and temporary immersion in water | | Operating temperature range,°C | -40 – 50 | | Operating humidity range, % | 10 – 95 | | Ability to connect additional equipment | external screen (video output cable included) | | Measuring scale | yes | | Interface connectors | LEMO video connector (PAL, 50Hz) | | Mount | Picatinny | | Pouch/case/bag in set | case | | Additional | hot spot detection, picture-in-picture mode, ten types of the reticle with color selection (black/white) |
|
