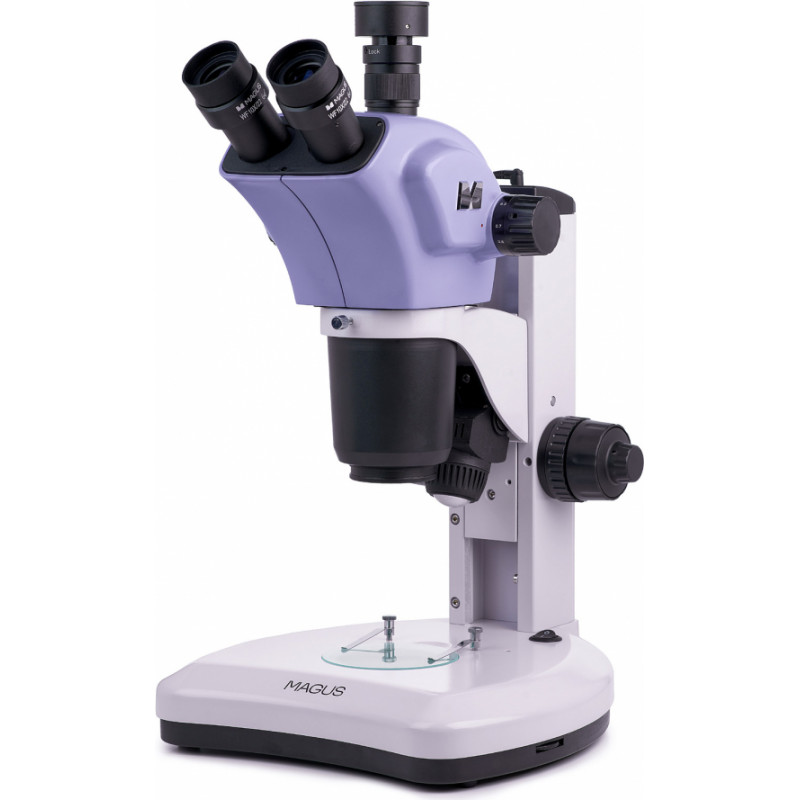

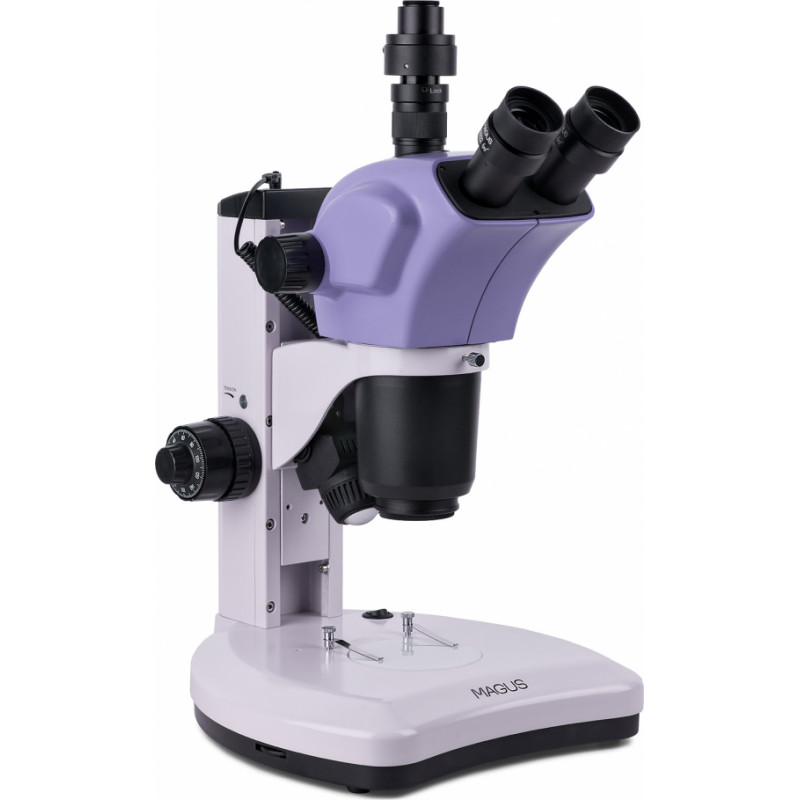

Magus Stereo 9T Stereoscopic Microscope

Pieejamība: Iepriekšpasūtījums
ID: 1738695
Produkta kods: ART#1738695

1,394.02€
(Bez PVN: 1,394.02€)


Preces apraksts

The MAGUS Stereo 9T stereoscopic microscope forms a non-inverted three-dimensional image and has a large working distance. You can examine samples but also conduct experiments with them. The Greenough optical scheme produces images that are sharp and three-dimensional which is essential for high-precision observations. The microscope is equipped with a zoom lens and two illuminators (transmitted and reflected light) and can be optionally upgraded with additional accessories. Excellent choice for restoration, soldering, modeling, machinery service repair, and quality control.

Optics

The microscope has a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, but a digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective combined with a 10x eyepiece provides magnification from 7x to 63x. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use auxiliary objectives (not included), you can change the magnification range, working distance, and field of view of the microscope. With optional accessories, the magnification of the microscope can be increased up to 315x.

Illumination

The working area is lit by two LED illuminators: 5W transmitted light illuminator and 3W reflected light (oblique) illuminator. Both illuminators are AC powered, bright, do not change color temperature when adjusting brightness, and have a 50,000-hour life.

Stage and focusing mechanism

One of the included plates is installed on the stage: double-sided black and white, white, or transparent. The first plate is used for observing opaque objects and makes the image high contrast. Dark-colored samples are examined on the white side, while light-colored samples - on the black side. White and transparent plates are used when you are observing translucent and transparent samples and want to achieve maximum brightness and uniform illumination of the working area.

The microscope has a coarse and fine focusing mechanism. Fine focusing is used at magnifications above 40x. Coarse focusing has tension adjustment.

Accessories

To extend the microscope’s capabilities, use additional accessories such as eyepieces, auxiliary lenses, calibration slides, and digital cameras. It is also possible to install a device for polarized light observations.

Key features:

  • Zoom objective with a zoom ratio of 9:1
  • 360° rotation of the trinocular head, trinocular tube for photo and video shooting
  • Greenough optical scheme, three-dimensional image with a large depth of field
  • Transmitted and reflected (oblique) illumination, two durable LED illuminators
  • Optional accessories to improve microscope performance

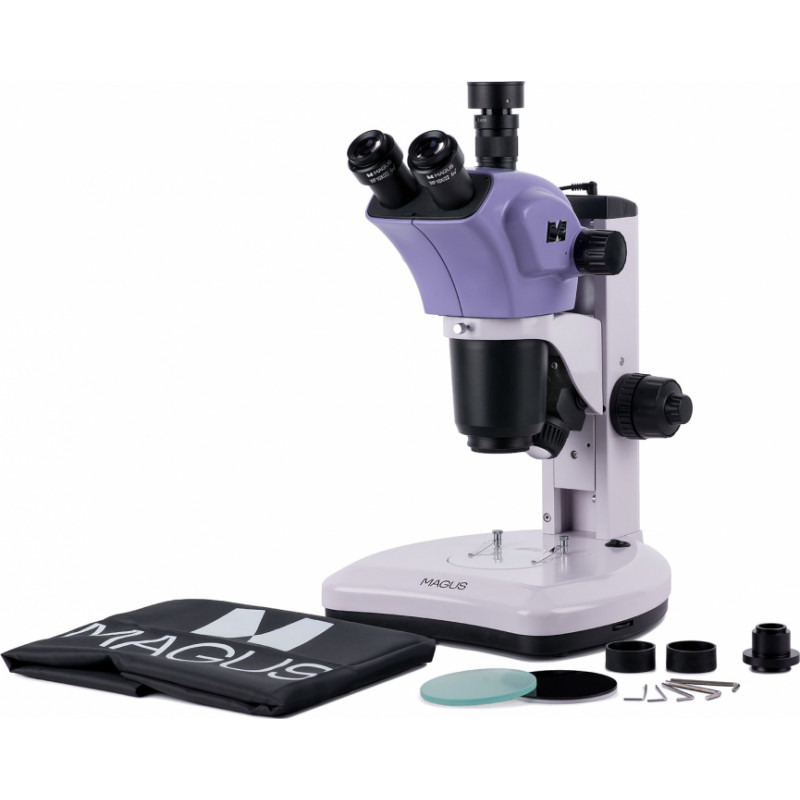

The kit includes:

  • Base with integrated transmitted light source and power supply unit
  • Stand with focusing mechanism
  • Trinocular head
  • Eyepiece 10x/22 mm (2 pcs.)
  • Black-and-white stage plate
  • White plate
  • Transparent plate
  • Reflected light oblique illuminator
  • C-mount adapter
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 15x/15mm eyepiece (2 pcs.)
  • 16x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Auxiliary objective 0.5x
  • Auxiliary objective 2x
  • Reflected ring light illuminator
  • Polarization device
  • Digital camera
  • Calibration slide
BrandMAGUS
Warranty, years5
EAN5905555018560
Package size (LxWxH), cm44.7x42.2x67.5
Shipping Weight, kg11.5
Headtrinocular
Objectives0.7–6.3x (*optional: with 0.5x auxiliary objective: 0.35–3.15x; with 2x auxiliary objective: 1.4–12.6x)
Working distance, mm110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4)
Field of view, mm31.43–3.49 (with 0.5x auxiliary objective: 62.85-6.98; with 2x auxiliary objective: 15.71–1.745), with a 10x eyepiece
Stage, mmØ90
Eyepiece diopter adjustment, diopters±5D on each eyepiece
Focuscoaxial, coarse (with coarse focusing tension adjustment and a lock knob), and fine (0.002mm)
Brightness adjustmentyes
Head inclination angle45 °
Light source typereflected light: oblique illuminator - 3W LED; transmitted light: 5W LED
Assembly and installation difficulty levelcomplicated
Magnification rangeup to 200x
Eyepiece tube diameter, mm30
Weight, kg8
Dimensions, mm280x463x335
Illumination locationdual
Typestereo/instrumental
Nozzle360 ° rotatable
Magnification, x7–63 basic configuration (*optional: 3.5–315); zoom ratio 9:1
Eyepieces10x/22mm, long eye relief (*optional: 15x/15mm, 16x/15mm, 20x/12mm, 25x/9mm)
Stage featureswhite plate, black/white plate, transparent plate
IlluminationLED
Power supply220V/50Hz, AC network
Ability to connect additional equipmentpolarization device
User levelexperienced users, professionals
Optical schemeGreenough
Applicationfor applied research
Research methodbright field
Pouch/case/bag in setdust cover
