Magus PH1 Phase Contrast Device

This phase-contrast device has four phase plan achromatic objectives, including a 100x/1.25 oil immersion objective. The 40x and 100x magnification objectives are spring-loaded to protect the objectives in case of accidental shocks. The kit also includes four filters (yellow, blue, green, matt). The device is designed for studying transparent specimens, mainly living cells, without staining, which is detrimental to the cells.

The phase condenser is mounted on the microscope instead of the brightfield condenser. The ring diaphragms on the revolving nosepiece and the phase rings of the objectives are centered using a centering telescope (included). Filters are used to increase the contrast of an image and reduce the halo effect (the glow around a sample that interferes with observation).

Compatibility:

• MAGUS Bio 230B Biological Microscope
• MAGUS Bio 230BL Biological Microscope
• MAGUS Bio 230T Biological Microscope
• MAGUS Bio 230TL Biological Microscope
• MAGUS Bio 250B Biological Microscope
• MAGUS Bio 250BL Biological Microscope
• MAGUS Bio 250T Biological Microscope
• MAGUS Bio 250TL Biological Microscope
• MAGUS Lum 400 Fluorescence Microscope
• MAGUS Lum 400L Fluorescence Microscope

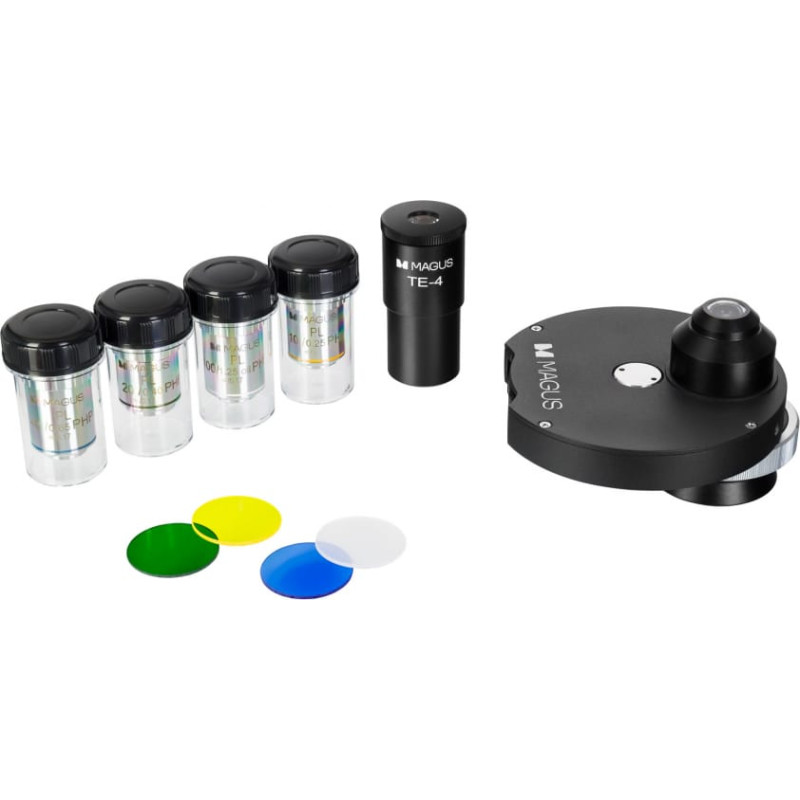

Accessories:

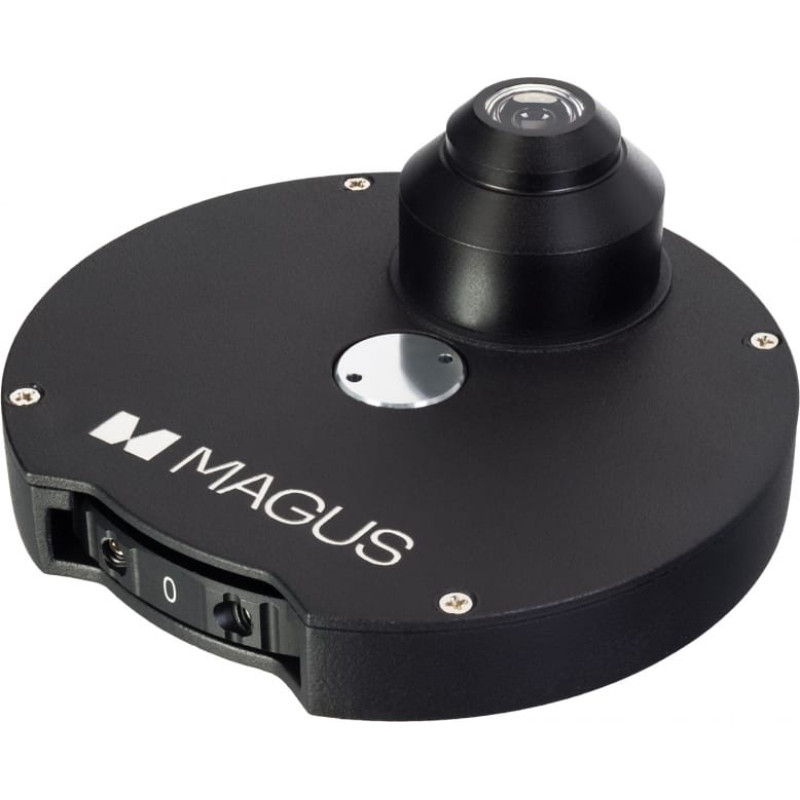

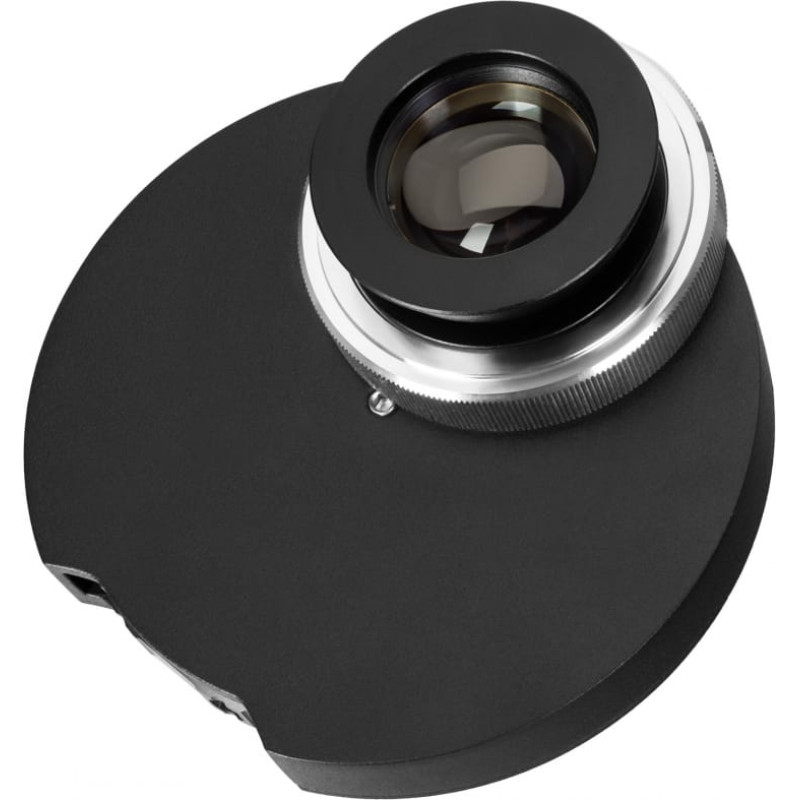

• Phase condenser
• Phase infinity plan achromatic objective: 10x/0.25 PHP
• Phase infinity plan achromatic objective: 20x/0.40 PHP
• Phase infinity plan achromatic objective: 40x/0.65 PHP (spring loaded)
• Phase infinity plan achromatic objective: 100x/1.25 PHP (spring loaded, oil)
• Centering telescope
• Blue filter
• Green filter
• Yellow filter
• Matt filter
• Bottle with immersion oil
