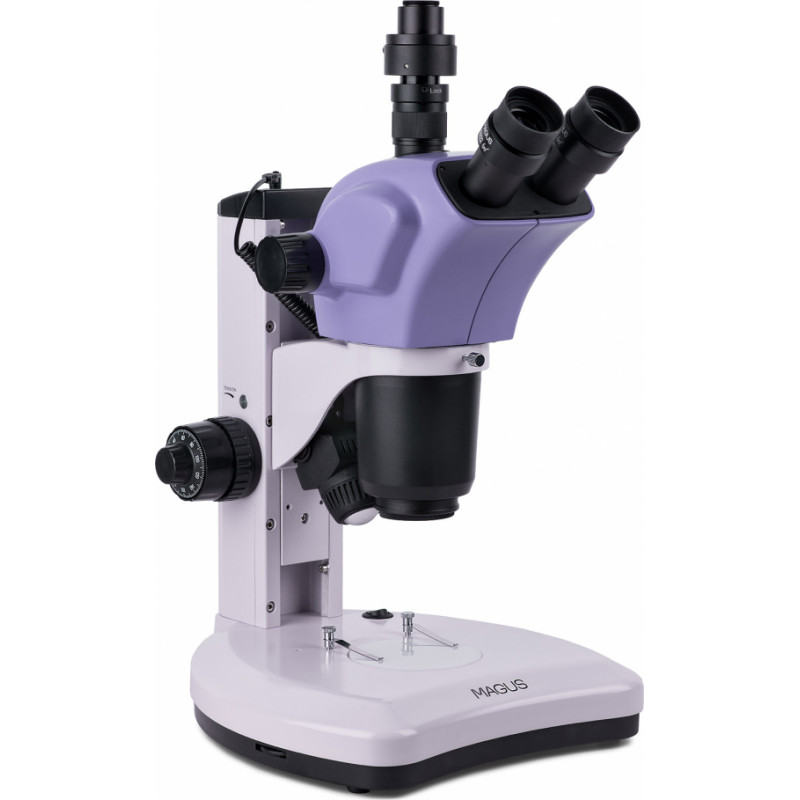

The MAGUS Stereo D9T Stereomicroscope forms a non-inverted three-dimensional image and has a large working distance. You can examine samples but also conduct experiments with them. The Greenough optical scheme produces images that are sharp and three-dimensional which is essential for high-precision observations. The microscope is equipped with a zoom lens and two illuminators (transmitted and reflected light) and can be optionally upgraded with additional accessories. Excellent choice for restoration, soldering, modeling, machinery service repair, and quality control.
Digital camera
The MAGUS CBF10 digital camera is designed for the brightfield microscopy technique.
The camera is equipped with an 18MP sensor and produces realistic images at a resolution of 4912x3684pix. The camera is recommended for use with 4x and 10x flat-field microscope objectives as well as stereomicroscopes. When working with low magnification objectives, the camera will enable you to see more fine details.
At maximum resolution, video is captured at 13.1fps. It is enough for adjusting the focus of the microscope.
At resolutions of 2456x1842pix and 1228x922pix, the frequency increases to 34.3fps and 54.4fps. The transitions between frames become softer and the camera catches the slightest movement of the sample. These modes are suitable for classroom demonstrations, recording video of fast-moving processes, and observing samples that are moving.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.
Optics
The microscope has a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, but a digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective combined with a 10x eyepiece provides magnification from 7x to 63x. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use auxiliary objectives (not included), you can change the magnification range, working distance, and field of view of the microscope. With optional accessories, the magnification of the microscope can be increased up to 315x.
Illumination
The working area is lit by two LED illuminators: 5W transmitted light illuminator and 3W reflected light (oblique) illuminator. Both illuminators are AC powered, bright, do not change color temperature when adjusting brightness, and have a 50,000-hour life.
Stage and focusing mechanism
One of the included plates is installed on the stage: double-sided black and white, white, or transparent. The first plate is used for observing opaque objects and makes the image high contrast. Dark-colored samples are examined on the white side, while light-colored samples - on the black side. White and transparent plates are used when you are observing translucent and transparent samples and want to achieve maximum brightness and uniform illumination of the working area.
The microscope has a coarse and fine focusing mechanism. Fine focusing is used at magnifications above 40x. Coarse focusing has tension adjustment.
Accessories
To extend the microscope’s capabilities, use additional accessories such as eyepieces, auxiliary lenses, calibration slides, and digital cameras. It is also possible to install a device for polarized light observations.
Key features of the microscope:
- Zoom objective with a zoom ratio of 9:1
- 360° rotation of the trinocular head, trinocular tube for photo and video shooting
- Greenough optical scheme, three-dimensional image with a large depth of field
- Transmitted and reflected (oblique) illumination, two durable LED illuminators
- Optional accessories to improve microscope performance
Key features of the camera:
- Camera with an Aptina CMOS sensor for brightfield microscopy with 4x and 10x objectives as well as stereomicroscopes
- 18MP resolution: When working with low magnification objectives, the camera will enable you to see more fine details
- 13.1fps at a resolution of 4912x3684pix is enough for focusing adjustments
- 34.3fps and 54.4fps at resolutions of 2456x1842pix and 1228x922pix are perfect for classroom use, observing moving samples, recording video; the movement of the preparation can be seen without jerkiness and delays
- USB 3.0 interface for fast, smooth data transfer
- Software with photo, video recording, editing, external display, linear and angular measurement

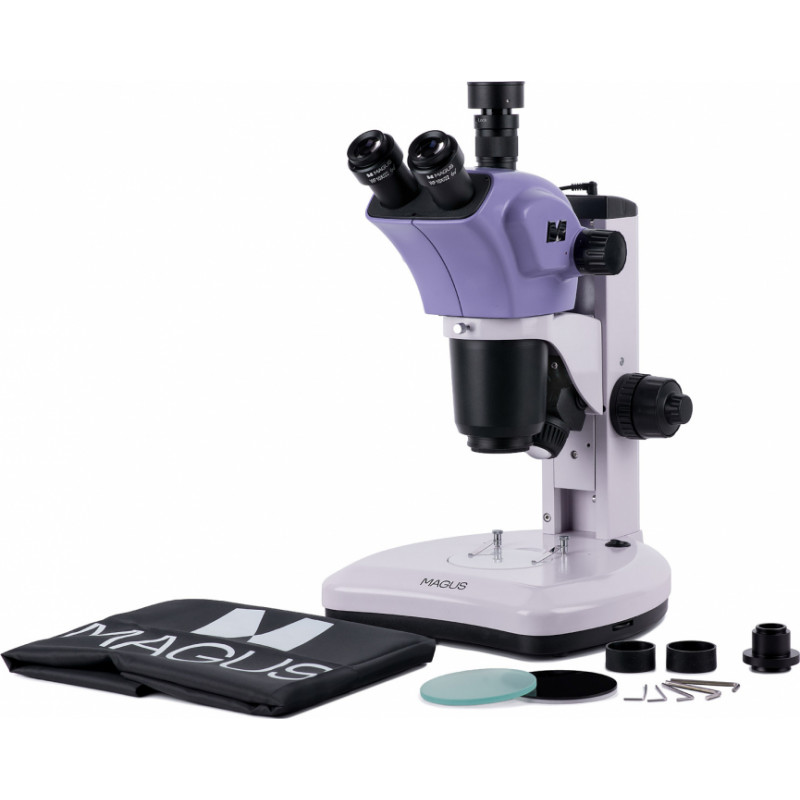

The kit includes:
- MAGUS CBF10 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Base with integrated transmitted light source and power supply unit
- Stand with focusing mechanism
- Trinocular head
- Eyepiece 10x/22 mm (2 pcs.)
- Black-and-white stage plate
- White plate
- Transparent plate
- Reflected light oblique illuminator
- C-mount adapter
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 15x/15mm eyepiece (2 pcs.)
- 16x/15mm eyepiece (2 pcs.)
- 20x/12mm eyepiece (2 pcs.)
- 25x/9mm eyepiece (2 pcs.)
- Auxiliary objective 0.5x
- Auxiliary objective 2x
- Reflected ring light illuminator
- Polarization device
- Calibration slide
| Brand | MAGUS | | Warranty, years | 5 | | EAN | 5905555018577 | | Package size (LxWxH), cm | 44.7x42.2x67.5 | | Shipping Weight, kg | 11.5 | | Head | trinocular | | Head inclination angle | 45 ° | | Magnification range | up to 200x | | Eyepiece tube diameter, mm | 30 | | Objectives | 0.7–6.3x (*optional: with 0.5x auxiliary objective: 0.35–3.15x; with 2x auxiliary objective: 1.4–12.6x) | | Working distance, mm | 110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4) | | Interpupillary distance, mm | 53 — 75 | | Field of view, mm | 31.43–3.49 (with 0.5x auxiliary objective: 62.85–6.98; with 2x auxiliary objective: 15.71–1.745), with a 10x eyepiece | | Stage, mm | Ø90 | | Eyepiece diopter adjustment, diopters | ±5D on each eyepiece | | Focus | coaxial, coarse (83mm, with coarse focusing tension adjustment) and fine (0.002mm) | | Brightness adjustment | yes | | Light source type | reflected light: oblique illuminator – 3W LED; transmitted light: 5W LED | | Assembly and installation difficulty level | complicated | | Illumination location | dual | | Weight, kg | 8 | | Dimensions, mm | 280x463x335 | | === Delimiter === | Camera specifications | | Sensor | Aptina CMOS | | Color/monochrome | color | | Megapixels | 18 | | Maximum resolution, pix | 4912x3684 | | Sensor size | 1/2.3" (6.14x4.61mm) | | Pixel size, μm | 1.25x1.25 | | Light sensitivity | 0.62mV/lux/s | | Signal/noise ratio | 36.3dB | | Exposure | 0.1ms–2s | | Video recording | yes | | Video recording | yes | | Active range, dB | 65.8 | | Image format | *.jpg, *.bmp, *.png, *.tif | | Spectral range, nm | 380–650 (built-in IR filter) | | Shutter type | ERS (electronic rolling shutter) | | Software | MAGUS View | | System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display | | Mount type | C-mount | | Camera power supply | DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element | | Camera operating temperature range, °С | -10 — 50 | | Operating humidity range, % | 30 — 80 | | Type | stereo/instrumental, digital | | Nozzle | 360 ° rotatable | | Magnification, x | 7–63 basic configuration (*optional: 3.5–315); zoom ratio 9:1 | | Eyepieces | 10x/22mm, long eye relief (*optional: 15x/15mm, 16x/15mm, 20x/12mm, 25x/9mm) | | Stage features | white plate, black/white plate, transparent plate | | Illumination | LED | | Power supply | 220V/50Hz, AC network | | Ability to connect additional equipment | polarization device | | User level | experienced users, professionals | | Optical scheme | Greenough | | Application | for applied research | | Research method | bright field | | Pouch/case/bag in set | dust cover | | Frame rate, fps at resolution | 54.4@1228x922, 34.3@2456x1842, 13.1@4912x3684 | | Place of installation | trinocular tube, eyepiece tube instead of an eyepiece | | Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) | | White balance | automatic/manual | | Exposure control | automatic/manual | | Software features | image size, brightness, exposure time | | Output | USB 3.0, 5Gb/s | | Body | solid aluminum |
|
