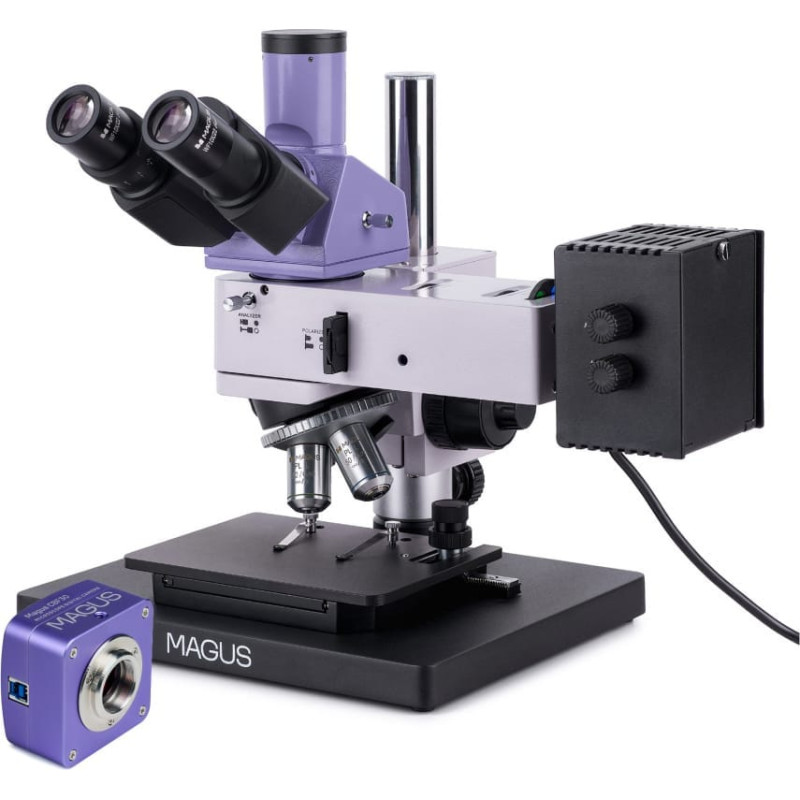

The MAGUS Metal D630 metallurgical reflected light microscope is used to examine the microstructure of opaque objects of any height and size. The objects of study are metals, alloys, semiconductors, and paint coatings. Available microscopy techniques: brightfield and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. MAGUS Metal D630 microscope is an excellent choice for industries in various sectors, research centers, and university departments.
Digital camera
The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique.
The camera is equipped with a 6.3MP sensor and produces realistic images at a resolution of 3072x2048pix. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will enable you to see more fine details.
Video is recorded at 59fps at maximum resolution. Videos are smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with samples that are moving and is suitable for classroom demonstrations. The resolution can be reduced to 1536x1024pix, if required.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.
Optics
The optics of the microscope are infinity-corrected. The trinocular tube that is used for mounting the camera is located vertically. The light beam can be directed either to the eyepieces or into the trinocular tube. The camera is not included in the basic configuration. It is comfortable to work with this microscope for long hours because the binocular head is 30° inclined. Diopter correction is provided on the left eyepiece to adjust the optics to the user’s eyesight.
There are 5 slots in the revolving nosepiece. The kit includes 4 plan achromatic objectives. When they are installed, there is one slot left for installing an optional one. The objectives with long working distance are designed for brightfield microscopy.
Illumination
The microscope only uses reflected light illumination. The illumination system includes a polarization device, an aperture diaphragm, and a field diaphragm. Light source: 30W halogen bulb. Its light is comfortable for the eyes, and so it does not contribute to eye fatigue. The diaphragm and light source can be centered, and a Köhler illumination setup is available. There are color filters.
Stage and focusing mechanism
The stand and focusing mechanism of the unique design provide two advantages: compact size and the possibility to observe samples of any height. The microscope can be easily placed on laboratory furniture with a maximum height of 40cm. A two-axis stage is used to examine small specimens. The focusing is adjusted by rotating the coaxial coarse and fine focusing knobs located on both sides of the stand. The mechanisms operate smoothly and accurately. Coarse tension adjustment can also be adjusted.
Accessories
The microscope can be upgraded with optional accessories: long working distance objectives, eyepieces, digital camera, calibration slides.
Key features of the microscope:
- No restrictions on the sample height and size
- Trinocular head with a trinocular tube for mounting a digital camera and with a 100:0 and 0:100 beam splitter
- 30W halogen bulb with warm light for working in reflected light using brightfield and polarization microscopy techniques
- Color filters, option to set up Köhler illumination, light source, and field and aperture diaphragms that can be centered
- Compact stand for mounting the microscope on small furniture
- Multiple optional accessories
Key features of the camera:
- For brightfield microscopy 4x, 10x, 20x, and 40x objectives
- 6.3MP resolution: when working with low magnification objectives, the camera will allow you to see more fine details
- 59fps for observing samples that are moving, recording video, and moving the preparation without jerkiness or delays
- SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer, brighter, and more color-saturated images
- USB 3.0 interface for fast, smooth data transfer
- Software with photo, video recording, editing, external display, and linear and angular measurement
The kit includes:
- MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Stand with focusing mechanism, stage and revolving nosepiece
- Reflected light illuminator with a lamphouse
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
- Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
- Eyepiece 10x/22mm with long eye relief (2 pcs.)
- C-mount adapter 1x
- Hex key wrench
- Base with a power input
- Power cord
- Reflected light illuminator power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22mm eyepiece with a scale
- 12.5x/14mm eyepiece (2 pcs.)
- 15x/15mm eyepiece (2 pcs.)
- 20x/12mm eyepiece (2 pcs.)
- 25x/9mm eyepiece (2 pcs.)
- Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
- Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
- Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
- Calibration slide
| Brand | MAGUS | | Warranty, years | 5 | | EAN | 5905555018331 | | Package size (LxWxH), cm | 39.4x37.4x73 | | Shipping Weight, kg | 19.5 | | Head | trinocular | | Head inclination angle | 30 ° | | Magnification range | from 200x to 800x | | Eyepiece tube diameter, mm | 30 | | Objectives | infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L20x/0.40, PL L50x/0.70; parfocal distance 45mm (*optional: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) | | Revolving nosepiece | for 5 objectives | | Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) | | Interpupillary distance, mm | 48 — 75 | | Stage, mm | 185x140 | | Stage moving range, mm | 35/30 | | Eyepiece diopter adjustment, diopters | ±5 (on the left tube) | | Diaphragm | built-in aperture and field | | Focus | coaxial, coarse (with coarse focusing tension adjustment) and fine (0.002 mm) | | Brightness adjustment | yes | | Light source type | 12V/30W | | Operating temperature range,°C | 5 — 35 | | Assembly and installation difficulty level | complicated | | Illumination location | upper | | === Delimiter === | Camera specifications | | Sensor | SONY Exmor CMOS | | Color/monochrome | color | | Megapixels | 6.3 | | Maximum resolution, pix | 3072x2048 | | Sensor size | 1/1.8" (7.37x4.92mm) | | Pixel size, μm | 2.4x2.4 | | Light sensitivity | 425mV at 1/30s | | Signal/noise ratio | 0.15mV at 1/30s | | Exposure | 0.02ms–15s | | Video recording | yes | | Video recording | yes | | Image format | *.jpg, *.bmp, *.png, *.tif | | Spectral range, nm | 380–650 (built-in IR filter) | | Shutter type | ERS (electronic rolling shutter) | | Software | MAGUS View | | System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB3.0 port, CD-ROM, 17" or larger display | | Mount type | C-mount | | Camera power supply | DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element | | Camera operating temperature range, °С | -10 — 50 | | Operating humidity range, % | 30 — 80 | | Type | light/optical, digital, metallurgical | | Nozzle | Siedentopf | | Magnification, x | 50–500 basic (*optional: 50–1000/1250/1500/2000/2500) | | Eyepieces | 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) | | Stage features | two-axis mechanical stage; microscope base size: 300x240 mm | | Illumination | halogen | | Power supply | 220±22V, 50Hz, AC network | | Light filters | green, blue, yellow, matt | | Additional | built-in analyzer and removable polarizer | | User level | experienced users, professionals | | Application | metallurgical | | Research method | bright field, polarization | | Pouch/case/bag in set | dust cover | | Frame rate, fps at resolution | 59@3072x2048, 59@1536x1024 | | Place of installation | trinocular tube, eyepiece tube instead of an eyepiece | | Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) | | White balance | automatic/manual | | Exposure control | automatic/manual | | Software features | image size, brightness, exposure time | | Output | USB 3.0, 5Gb/s | | Body | solid aluminum |
|
