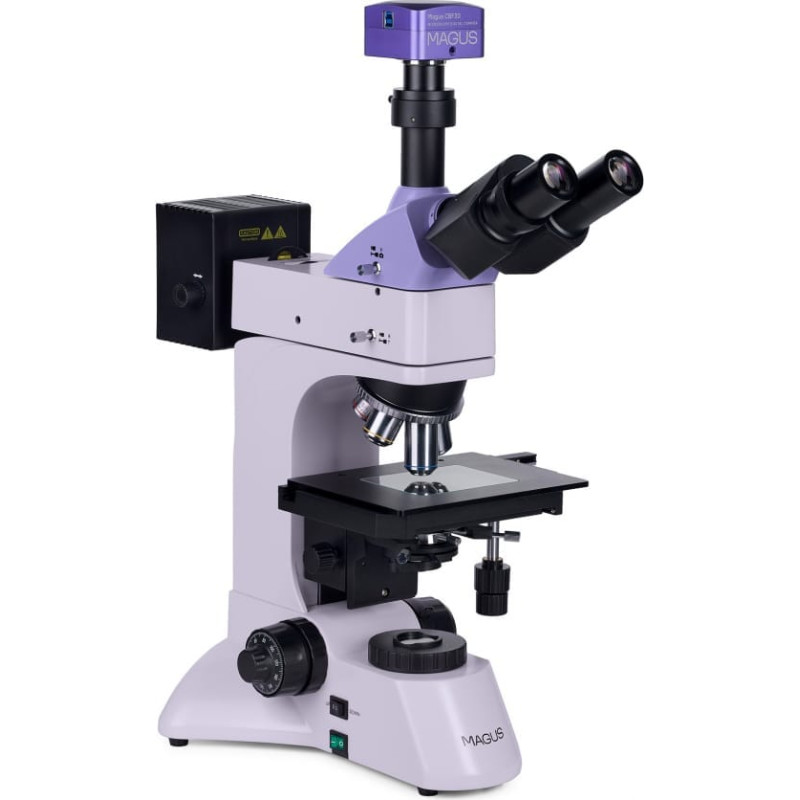

Magus Metal D600 Metallurgical Digital Microscope

Metallurgical microscope MAGUS Metal D600 is designed for studying opaque samples (metals, alloys, paint coatings, semiconductor and other materials) in reflected light using brightfield and polarization microscopy techniques. You can study the microstructures on flat and polished samples. The transmitted light illuminator also makes it possible to examine the particles trapped on filters and translucent materials (like thin films) under the microscope. The microscope is suitable for the research and analysis conducted by geologists, metallurgists, engineers, archaeologists, and specialists in other fields of science.

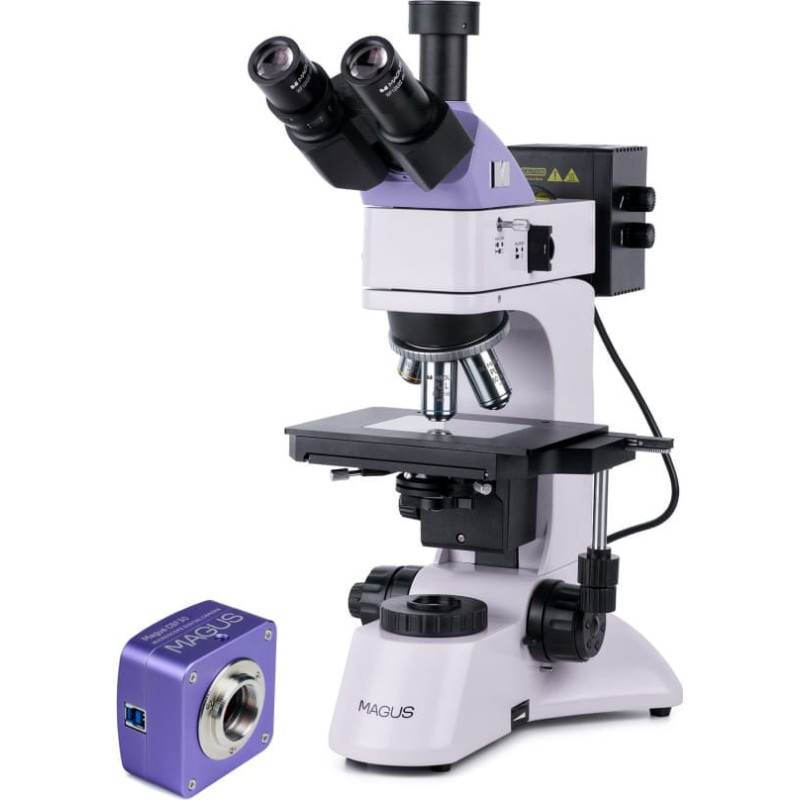

Digital Camera

The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique. The camera is equipped with a 6.3MP sensor and produces realistic images at a resolution of 3072x2048pix. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will enable you to see more fine details. Video is recorded at 59fps at maximum resolution. Videos are smooth, with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with samples that are moving and is suitable for classroom demonstrations. The resolution can be reduced to 1536x1024pix, if required. The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Optics

The trinocular head is equipped with a trinocular tube for camera mounting (not included). The light beam can be split in two positions: 100:0 or 0:100, which means you can direct the light beam to either the digital camera or the eyepiece tube. The trinocular head is 30° inclined, which is convenient for long observations. There is a diopter adjustment ring on the left tube.

In the basic configuration, the microscope magnification ranges from 50x to 600x. In order to increase the upper magnification limit, you can mount additional eyepieces. The revolving nosepiece with objectives is oriented toward the interior. Five objectives can be mounted at the same time – four of them are included in the kit and one slot is free for installing an additional one. The microscope uses plan achromatic objectives with a long working distance suitable for brightfield microscopy.

Illumination

The microscope is equipped with transmitted and reflected light illumination systems. Both use 30W brightness-adjustable halogen bulbs powered by an AC power supply. Halogen bulbs emit light with a color temperature that allows for comfortable work.

The microscope is equipped with polarization devices for reflected light observations: built-in analyzer and removable polarizer. The aperture and field diaphragms make it possible to set up the Köhler illumination, and there are also color filters included in the kit. The apertures and the reflected light source can be centered.

The transmitted light illumination system uses a traditional Abbe condenser, the position of which can be adjusted in two ways: centered and adjusted in height. It is complemented by a flip-up lens for use with low magnification objectives. There are aperture and field diaphragms, i.e., you can use the Köhler illumination method.

Stage and focusing mechanism

The maximum height of the specimen that can be put on the stage is 20mm. The specimen is moved by moving the stage along the two axes. It is complemented by a glass plate that is used for working with opaque specimens.

Coarse and fine focusing mechanisms are used for focus adjustment. Focusing is smooth and precise. The coarse focusing has a lock knob and tension adjustment. The focusing knobs are coaxially positioned on both sides so that you do not have to hold your hands in the air while working; instead, you can place them on the table.

Accessories

The MAGUS Metal D600 microscope can be further equipped with additional eyepieces, long working distance objectives, digital cameras, and calibration slides.

Key features of the microscope:

• Microscope for studying opaque flat and polished samples in reflected light and translucent samples in transmitted light
• Trinocular head with a trinocular tube and a beam splitter
• Transmitted and reflected light source: 30W halogen bulb
• Köhler illumination method in transmitted and reflected light, polarization microscopy technique in reflected light
• Elements (diaphragms and light sources) of the reflected light illumination system that can be centered, set of filters
• Abbe condenser with flip-up lens that is used with low magnification objectives
• Wide range of additional objectives and eyepieces

Key features of the camera:

• For brightfield microscopy 4x, 10x, 20x, and 40x objectives
• 6.3MP resolution: when working with low magnification objectives, the camera will allow you to see more fine details
• 59fps for observing samples that are moving, recording video, and moving the preparation without jerkiness or delays
• SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer, brighter, and more color-saturated images
• USB 3.0 interface for fast, smooth data transfer
• Software with photo, video recording, editing, external display, and linear and angular measurement

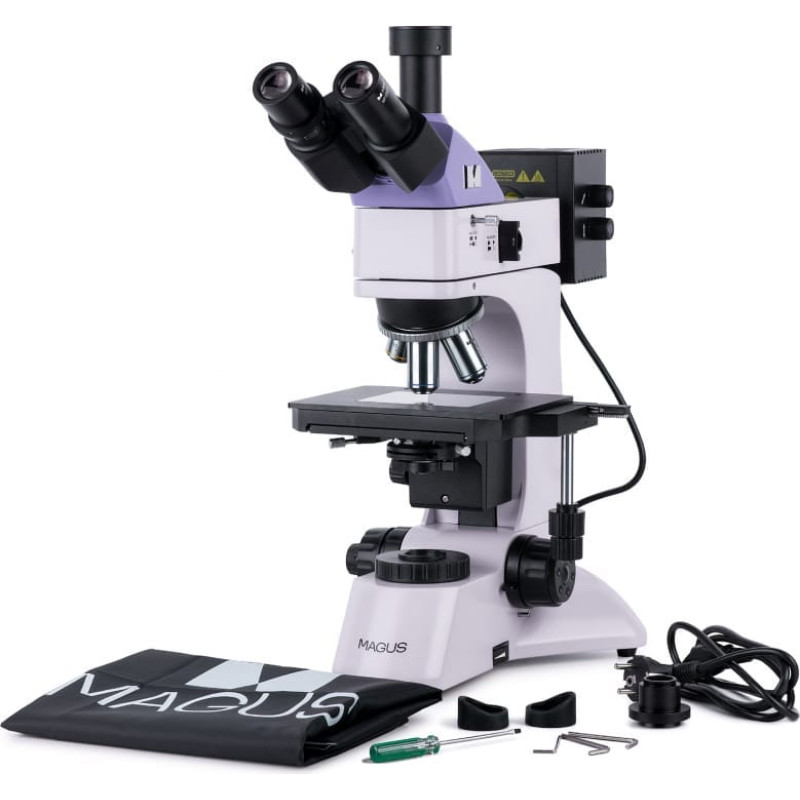

The kit includes:

• MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
• Base with a power input, transmitted light source and condenser, focusing mechanism, stage and revolving nosepiece
• Reflected light illuminator with a lamphouse
• Trinocular head
• Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
• Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
• Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98mm
• Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08mm
• Eyepiece 10x/22mm with long eye relief (2 pcs.)
• Glass stage plate
• C-mount adapter 1x
• Hex key wrench
• AC power cord
• Reflected light illuminator power cord
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale
• 12.5x/14mm eyepiece (2 pcs.)
• 15x/15mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 25x/9mm eyepiece (2 pcs.)
• Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
• Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
• Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25mm
• Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
• Calibration slide
