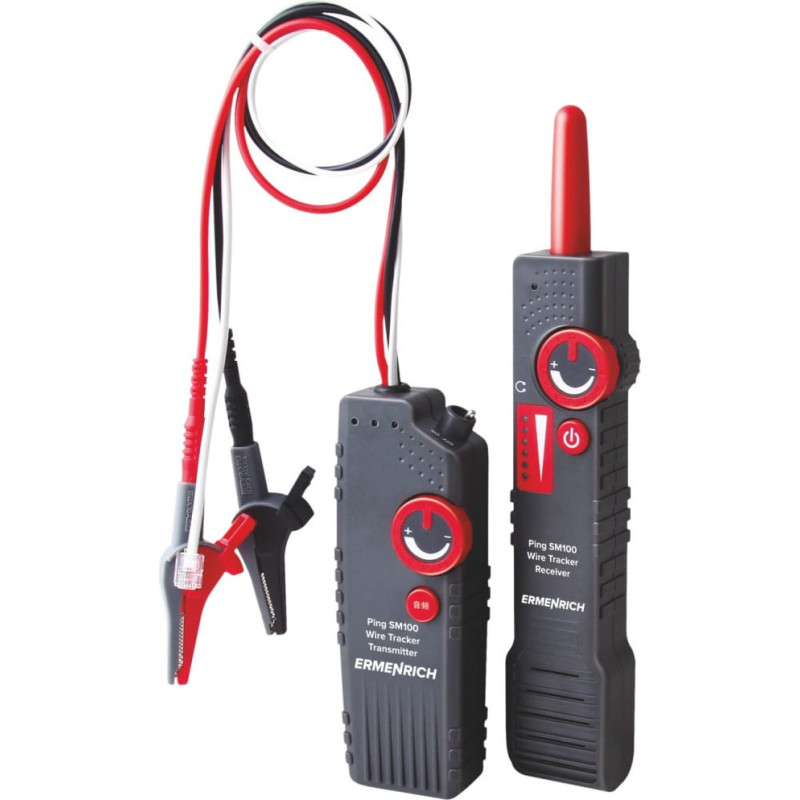

The Ermenrich Ping SM100 is designed for tracing cables in walls and ceilings as well as cables buried underground. The maximum detection depth is 2 meters (6.6ft). The device can find de-energized and energized cables, i.e. it can be used to trace cables hidden under plaster, map cable lines, find drilling locations, etc. The cable tracing is performed with crosstalk protection.
The device includes a transmitter and a receiver, the sensitivity of each unit can be adjusted individually. Both devices are powered by rechargeable batteries, an adapter and charging cable are included. The Ermenrich Ping SM100 comes with earbuds, which will come in handy when working in noisy environments.
Key features:
- For tracing different types of energized and de-energized cables
- Maximum detection depth – 2 meters (6.6ft) (walls, ceilings, ground, etc.)
- Crosstalk protection, transmitter, and receiver sensitivity adjustment
- Powered by a rechargeable battery
The kit includes:
- Transmitter
- Receiver
- AC adapter 5V, 1A
- Micro USB cable
- Earbuds

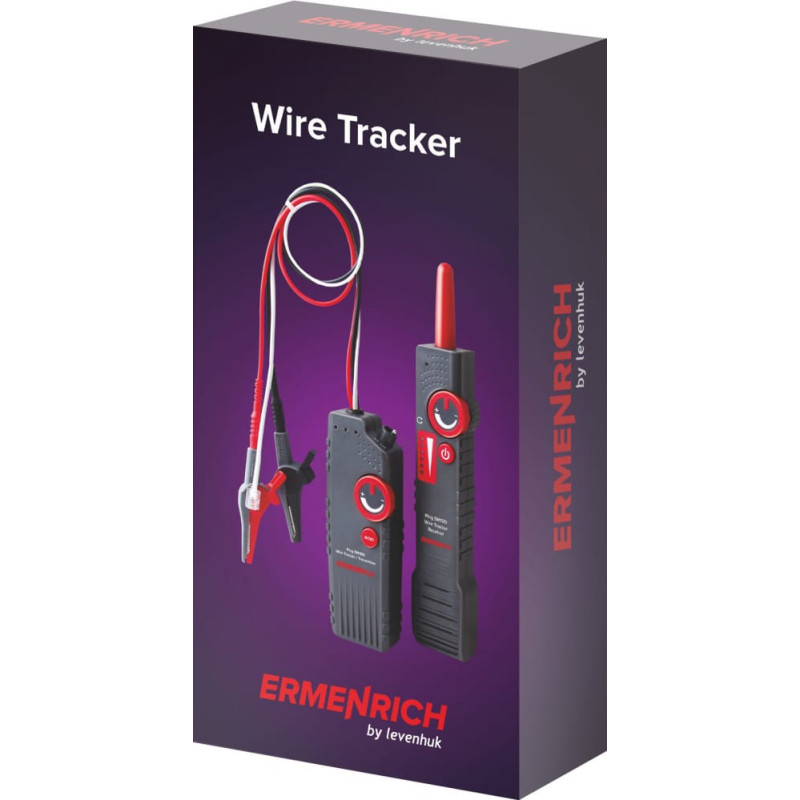

- Carry bag
- User manual and warranty card
| Brand | Ermenrich | | Warranty, years | 5 | | EAN | 5905555016931 | | Package size (LxWxH), cm | 6x26.5x13.5 | | Shipping Weight, kg | 0.5 | | === Delimiter === | Transmitter | | Maximum possible voltage of the circuit under test, V | 400 | | Maximum signal transmission distance, m (ft) | 10000 | | Peak output signal voltage, V | 21 | | Polarity test | yes | | Crosstalk protection | yes | | Low battery status indicator | yes | | Operating temperature range,°C | -10 — 40 | | Operating humidity range, % | 30 — 60 | | === Delimiter === | Receiver / Remote unit | | Adjustable sensitivity | yes | | Low battery status indicator | yes | | Operating temperature range,°C | -10 — 40 | | Operating humidity range, % | 30 — 60 | | Speaker | yes | | Ports | microUSB, RJ11, power supply, alligator clips | | Tracing cable types | telephone, coaxial, common wires, power cable, network cable | | Maximum detection depth, m (ft) | 2 (6.6) | | Signal transmission format | multifrequency impulse | | Maximum operating current, mA | <150 | | Power supply | charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1400 mAh, 3.7V lithium polymer battery | | Ports | microUSB, earbuds | | Maximum operating current, mA | <80 | | Power supply | charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1400 mAh, 3.7V lithium polymer battery |
|
