The Ermenrich Ping SM80 Underground Wire Detector is designed to detect low voltage or zero voltage single-core and two-core parallel cables that are low or zero voltage as well as buried deep in the ground or hidden in walls. It can be used for land surveying and site investigations before starting construction works, e.g., before drilling walls, foundation excavations, etc. The Ermenrich Ping SM80 also can locate circuit breakers and hidden sockets.

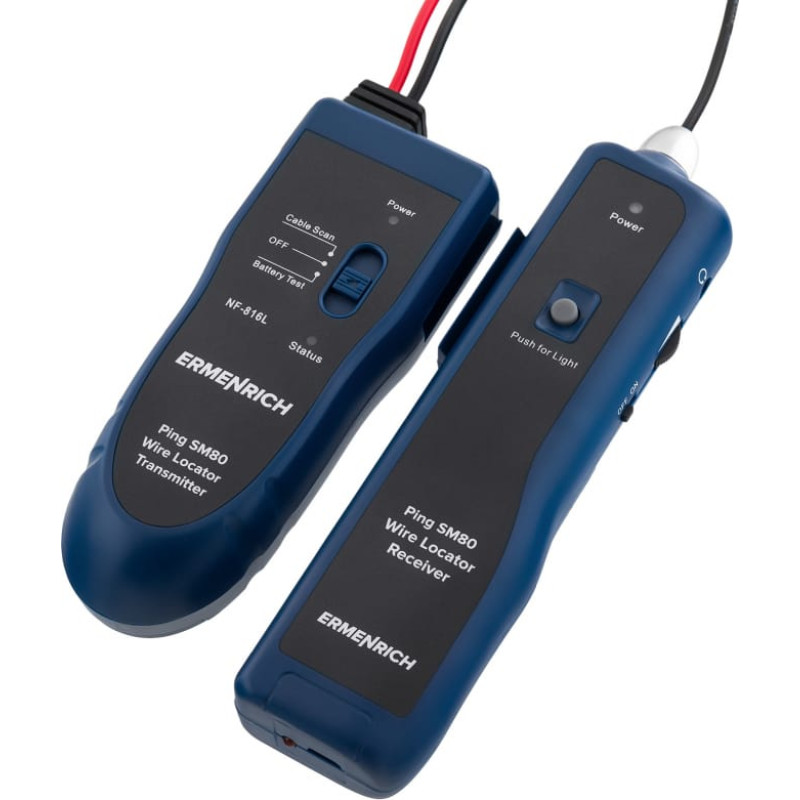

The device includes a transmitter and receiver. The depth of detection is 0.6 meters (2ft), and the length of the investigated cable can be up to 800 meters (2625ft). When a cable is detected, the Ermenrich Ping SM80 notifies you with an audible signal. If you are working in a noisy environment where the signal is hard to hear, you can connect earbuds (included) to the receiver.
The device is easy to use and easy to maintain, you only need to recharge the receiver and transmitter batteries occasionally.
Key features:
- For zero or low voltage cables only
- Detection of single-core cables and two-core cables with parallel connection
- Maximum cable depth – 0.6 meters (2ft), maximum length – 800 meters (2625ft)
- Cable depth measurement, determining the location of circuit breakers, finding safe spots to drill and installing sockets
- Powered by a rechargeable battery, option to connect earbuds

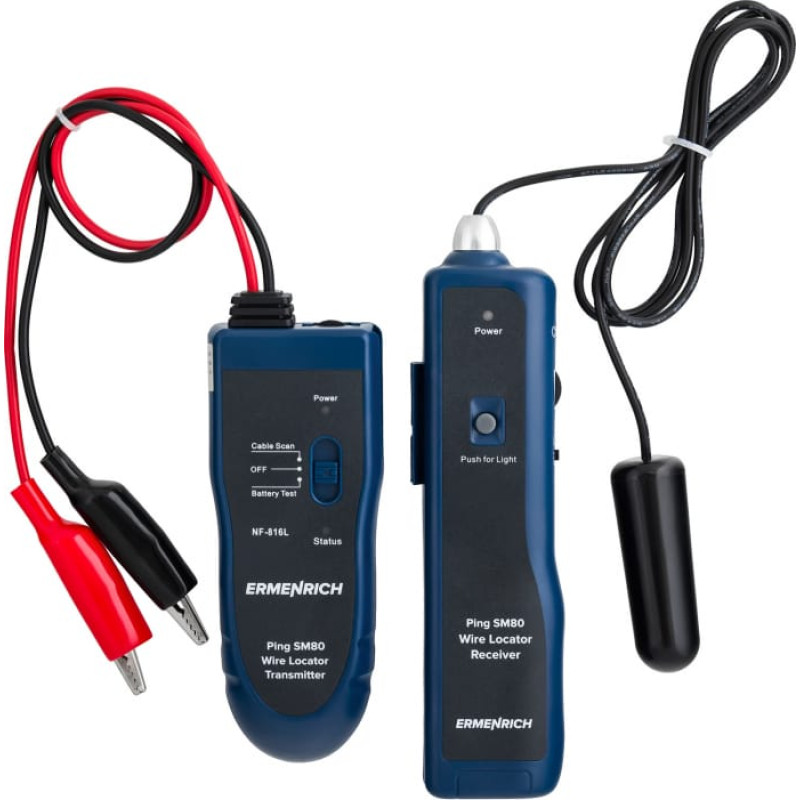

The kit includes:
- Transmitter
- Receiver
- Earbuds
- Micro USB cable

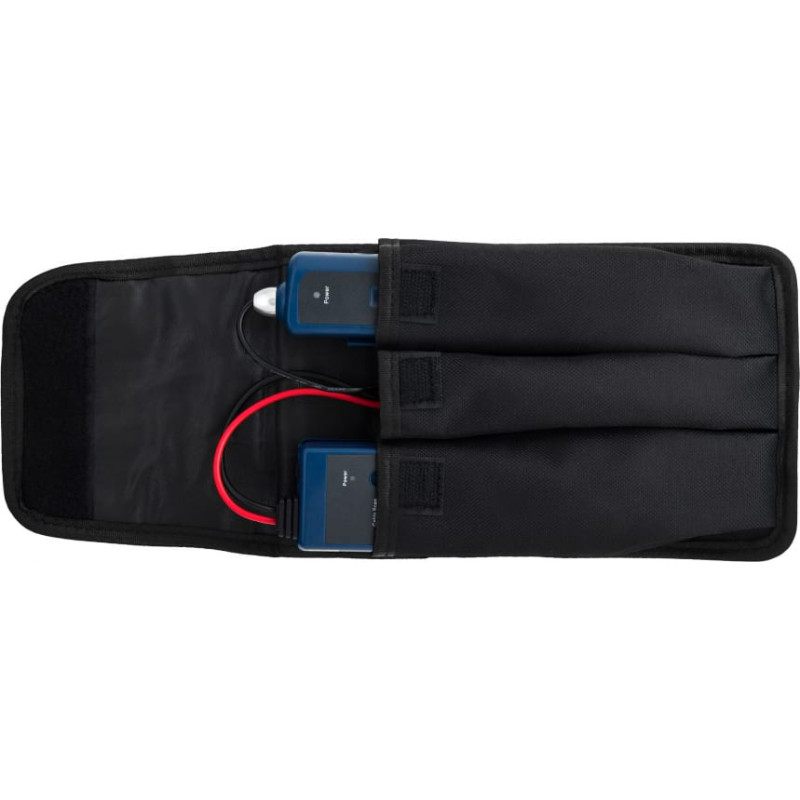

- Bag
- User manual and warranty card
| Brand | Ermenrich | | Warranty, years | 5 | | EAN | 5905555016924 | | Package size (LxWxH), cm | 25x15x5 | | Shipping Weight, kg | 0.5 | | === Delimiter === | Transmitter | | Maximum possible voltage of the circuit under test, V | 24 | | Signal frequency, kHz | 200 | | Maximum signal transmission distance, m (ft) | 800 | | Peak output signal voltage, V | 15 | | Voltage control | yes | | Low battery status indicator | yes | | Battery life, h | 4 | | Operating temperature range,°C | -10 — 60 | | === Delimiter === | Receiver / Remote unit | | Signal frequency, kHz | 200 | | Tracing cable types | single-core, two-core parallel cables | | Maximum detection depth, m (ft) | 0.6 (2) | | Signal transmission format | dual tone | | Maximum operating current, mA | 70 | | Power supply | charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1500mAh, 3.7V lithium polymer battery | | Additional | must not be used with high-voltage networks and for the detection of multicore cables | | Ports | earbuds | | Maximum operating current, mA | <70 | | Power supply | charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1500mAh, 3.7V lithium polymer battery | | Low battery status indicator | yes | | Battery life, h | 7 | | Operating temperature range,°C | -10 — 60 |
|
