The Ermenrich NetGeeks NP35 tester is designed for testing and tracing cables. It enables you to identify installation errors or faults in network and low-current systems: short circuits, open circuits, crossed pairs. The Port Flash function can quickly identify the network port to which the tested table is connected. There are other features: a cable crystal head QC and a telephone line status test.

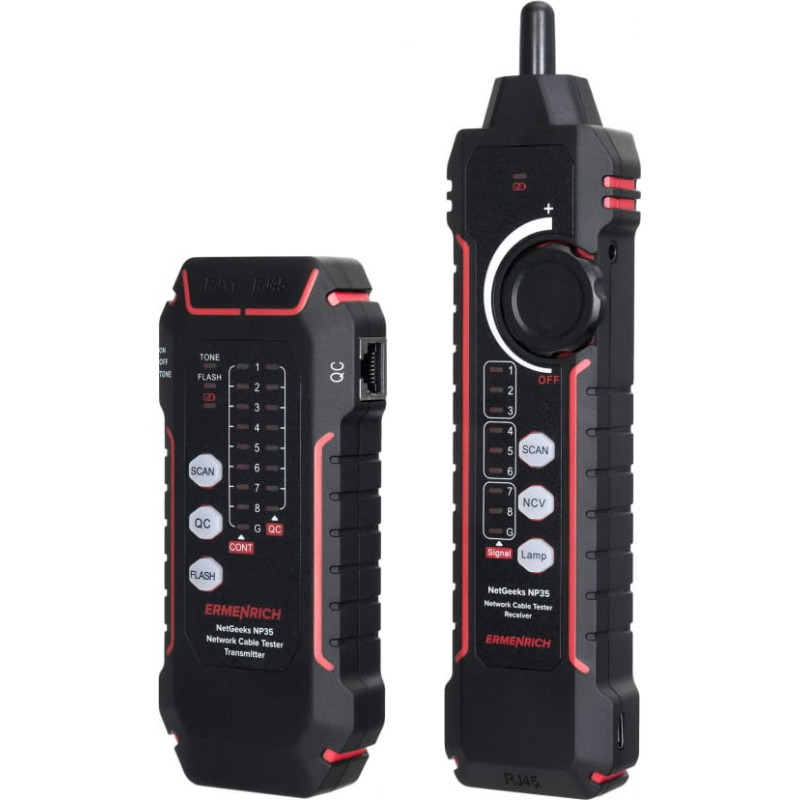

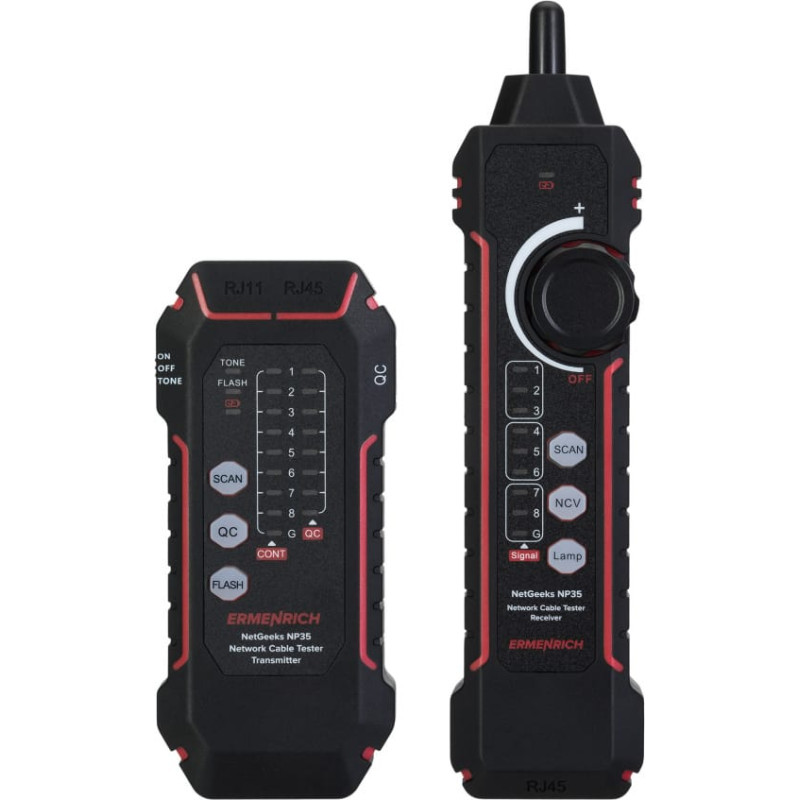

The Ermenrich NetGeeks NP35 tester consists of a transmitter and a receiver, both powered by rechargeable batteries. The receiver has an adjustable sensitivity and can safely locate the source of voltage (outlets, cables, machinery). The receiver is equipped with a flashlight for comfortable operation in dark areas as well as earbuds that can be connected to the receiver to avoid excessive external noise.
The device supports STP/UTP (CAT5, CAT6) network cables and telephone cables. It can be used for both home and professional use.
Key features:
- Tester for tracing and testing network cables
- Cable testing, Port Flash for port detection
- Cable crystal head QC, telephone line condition test, voltage polarity detection
- Powered by a rechargeable battery, option to connect earbuds

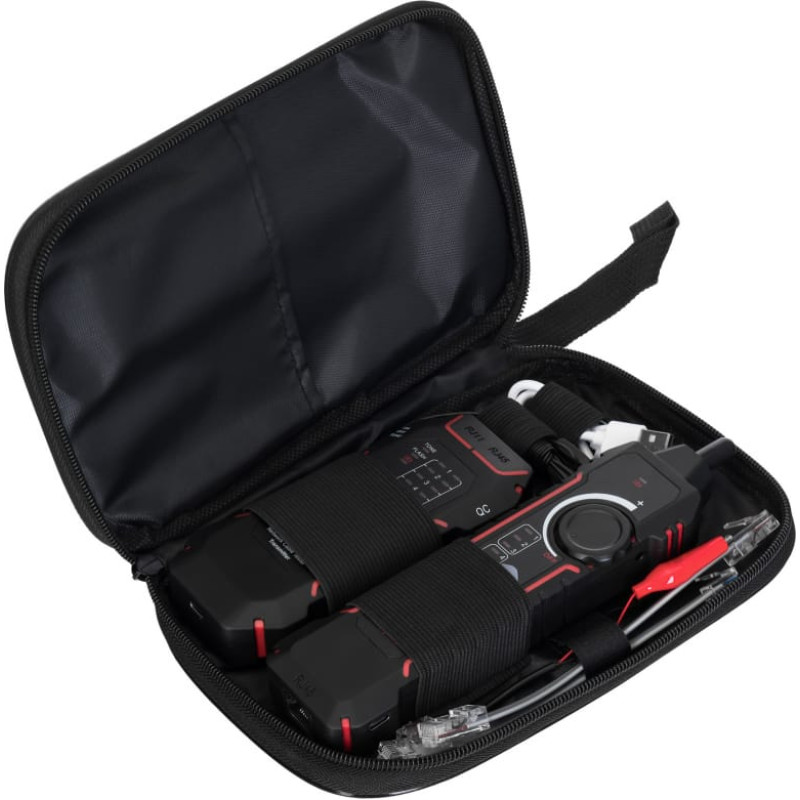

The kit includes:
- Transmitter
- Receiver
- RJ11 patch cord
- RJ45 patch cord
- Alligator clip
- DC cable
- Earbuds
- Type-C USB cable
- User manual and warranty card
| Brand | Ermenrich | | Warranty, years | 5 | | EAN | 5905555016917 | | Package size (LxWxH), cm | 4.5x22x14.5 | | Shipping Weight, kg | 0.5 | | Cable tracing | yes | | Crosstalk protection | yes | | Voltage polarity detection | yes | | Сable crystal head QC | yes | | Low battery status indicator | yes | | Operating humidity range, % | 20…70 | | Adjustable sensitivity | yes | | Non-contact voltage detection (NCV) | yes | | Flash light | yes | | Operating humidity range, % | 20…70 | | Ports | USB 2.0 (C type), RJ45, RJ11, QC | | Tracing cable types | telephone, STP/UTP (CAT5, CAT6) network cable | | Testing cable types | STP/UTP (CAT5, CAT6) network cable | | Maximum length of the tested cable, m (ft) | 600 (1970) | | Cable testing | + | | Port flash function | + | | Telephone line status test | +, (stand-by, ringing, off-hook) | | Standby current, mA | ≤25 (wiremapping/scanning/QC testing), ≤150 (Port Flash) | | Power supply | 1400 mAh, 3.7V lithium polymer battery, charging via a USB Type-C cable (included) | | Operating temperature range,°C | –10… +40 (14… 104) | | Ports | USB 2.0 (C type), RJ45, earbuds | | Standby current, mA | ≤35 | | Maximum operating current, mA | ≤280 | | Power supply | 1400 mAh, 3.7V lithium polymer battery, charging via a USB Type-C cable (included) | | Operating temperature range,°C | –10… +40 (14… 104) |
|
