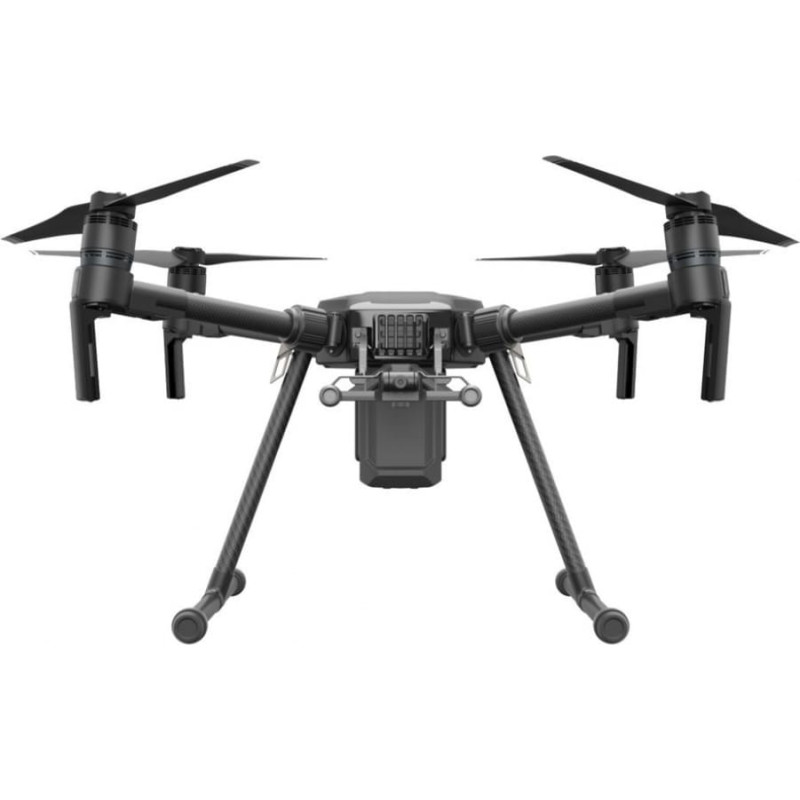

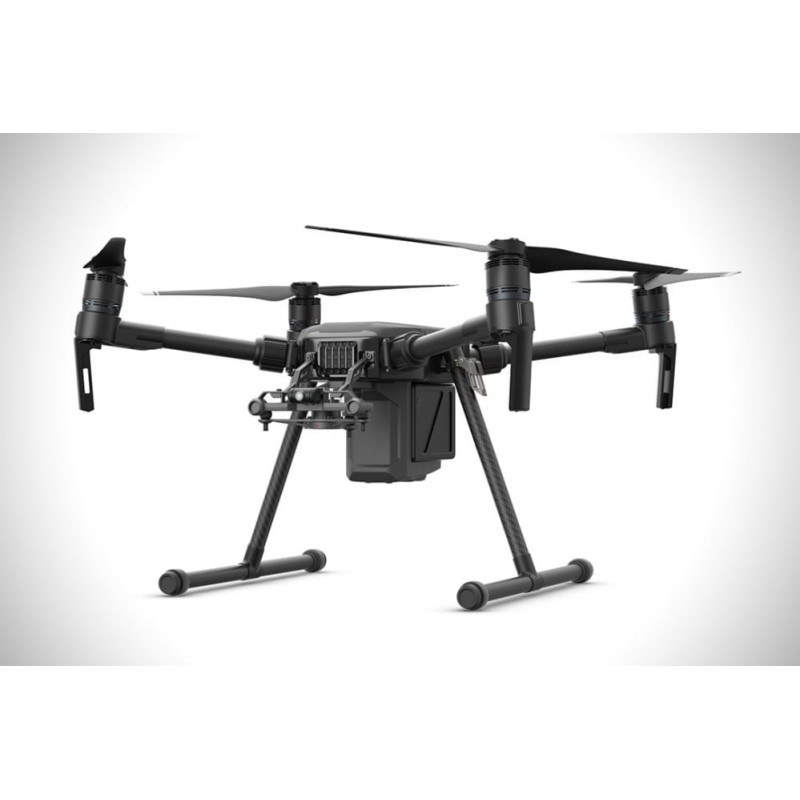

DJI drons Matrice 200 V2

High-performance motors paired with 17-inch propellers ensure stable flight in strong winds.
The new dual-battery power system automatically heats batteries when flying in sub-zero temperatures, while an enclosed design ensures weather and water resistance, so you can fly in a wide range of environments.
The M200 Series drones fold down in a snap and unfold just as quickly. Gimbal mounting plates and aircraft arms stay mounted during transportation so that you’re ready to fly within minutes.


Package Dimensions: 31.1×15.4×11.4inch (790×390×290mm)
Dimensions (unfolded): 34.9×34.6×14.9 inch (887×880×378 mm)
Dimensions (folded): 28.2×8.7×9.3 inch (716×220×236 mm)
Folding Method: Folded Inward
Diagonal Wheelbase: 25.3 inch (643 mm)
Number of Batteries: 2
Weight (TB50) Approx.: 3.80 kg
Weight (TB55) Approx.: 4.53 kg
Max Takeoff Weight: 6.14KG
Max Payload (2 TB50): Approx.2.34kg (with two standard batteries )
Max Payload (2 TB55): Approx.1.61kg (with two standard batteries )
Hovering Accuracy (P-mode with GPS):
Vertical: ±1.64 feet (0.5m) or ±0.33 feet (0.1m, Downward Vision System enabled)
Horizontal: ±4.92 feet (1.5m) or ±0.98 feet (0.3m.Downward Vision System enabled)
Max Angular Velocity: Pitch: 300° /s；Yaw: 150° /s
Max Pitch Angle: P Mode: 30°（Forward Vision System enabled: 25°）； A Mode: 35°；S Mode: 35°
Max Ascent Speed: 16.4 ft/s (5 m/s)
Max Descent Speed: Vertical: 9.8 ft/s (3 m/s)
Max Speed:
S Mode: 51.4mph (82.8kph)
P Mode: 38mph (61.2kph)
A Mode: 51.4mph (82.8kph)
Max Service Ceiling Above Sea Level: 1.86 mi (3000 m)
Max Wind Resistance: 39.4 ft/s (12 m/s)
Max Flight Time(No Payload, with TB50): 27min
Max Flight Time(No Payload, with TB55): 38min
Max Flight Time(Full Payload, with TB50): 13min
Max Flight Time(Full Payload, with TB55): 24min
Motor Model: DJI 3515
Propeller Model: 1760S
Retractable Landing Gear: Standard
Operating Temperature : -4° to 113° F (-20° to 45° C)
IP Rating: IP43

GIMBAL INSTALLATION
Downward Gimbal Mount: Supported
Upward Gimbal Mount: Not Supported
Downward Dual Gimbal: Not Supported

BATTERY (STANDARD)
Model: TB50 4280 mAh LiPo 6S
Voltage:22.8V; Energy: 97.58 Wh
Net Weight: Approx. 520g
Operating Temperature : -4° to 113° F (-20° to 45° C)
Storage Temperature: Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature: 41° to 104° F (5° to 40° C)
Max Charging Power: 180 W

CHARGER
Model: IN2C180
Voltage: 26.1 V; Rated Power: 180 W

FORWARD VISION SYSTEM
Obstacle Sensing Range: 2.3-98.4 feet (0.7-30 m)
FOV: Horizontal 60°, Vertical 54°
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)

DOWNWARD VISION SYSTEM
Velocity Range: <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m)
Altitude Range: <32.8 feet (10 m)
Operating Range: <32.8 feet (10 m)
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)
Ultrasonic Sensor Operating Range: 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment: Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

GIMBAL
Compatible Gimbals: Zenmuse X4S, Zenmuse X5S, Zenmuse Z30, Zenmuse XT

REMOTE CONTROLLER
Model: GL6D10A
Operating Frequency: 2.400-2.483 GHz; 5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference):
2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
EIRP:
2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Video Output Ports: USB, HDMI
Power Supply: Built-in battery
Charging: DJI charger
Dual User Capability: Host-and-Slave connection
Mobile Device Holder: Tablet or Smart Phone
Max Mobile Device Width: 170 mm
Output Power: 9 W (Without supplying power to smart device)
Operating Temperature : -4° to 104° F (-20° to 45° C)
Storage Temperature: Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature: 32° to 104° F (0° to 40° C)
Battery: 6000mAh 2S LiPo
USB Supply Power: iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)

BATTERY (OPTIONAL)
Model: TB55 7660 mAh LiPo S6
Voltage: 22.8V, Energy: 176.93Wh
Net Weight: Approx. 885g
Operating Temperature: -4° to 113° F (-20° to 45° C)
Storage Temperature: Less than 3 months: -20° C to 45° C
More than 3 months: 22° C to 28° C
Charging Temperature: 41° to 104° F (5° to 40° C)
Max Charging Power: 180 W

DJI GO 4 APP
Name: DJI GO 4
Mobile Device System Requirements: iOS 9.0 or later, Android 4.4.0 or later
Supported Mobile Devices:
iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus.
Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.
*Support for additional devices available as testing and development continues.

UPWARD INFRARED SENSOR
Obstacle Sensing Range: 0-16.4 feet (0-5 m)
FOV:±5°
Operating Environment: Large-sized object with diffuse relecting surface or high relective rate (>10%）
