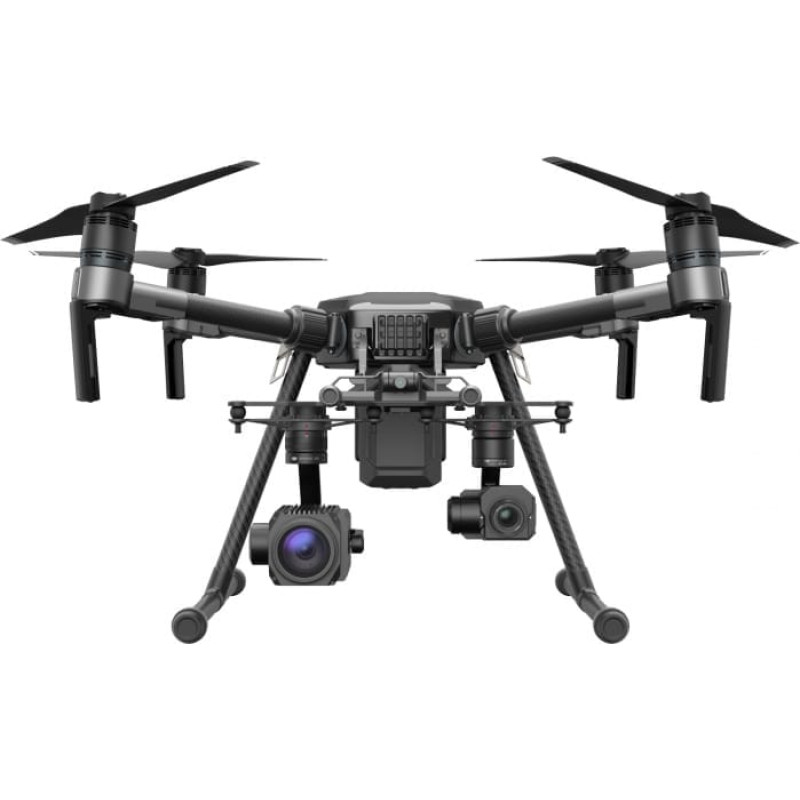

DJI MATRICE 210 DRONE COMBO INDUSTRIĀLAIS DRONS

The Matrice 210 has a maximum flight time of up to 38 minutes which gives pilots a great flight time whatever their application.

The 210 has IP43 weatherproofing, resulting in flight being possible in high winds, a temperature range of between -20° to 45° C and even heavy rain. This removes the limitations of other aircraft and meant the M210 can be used whenever it’s needed.

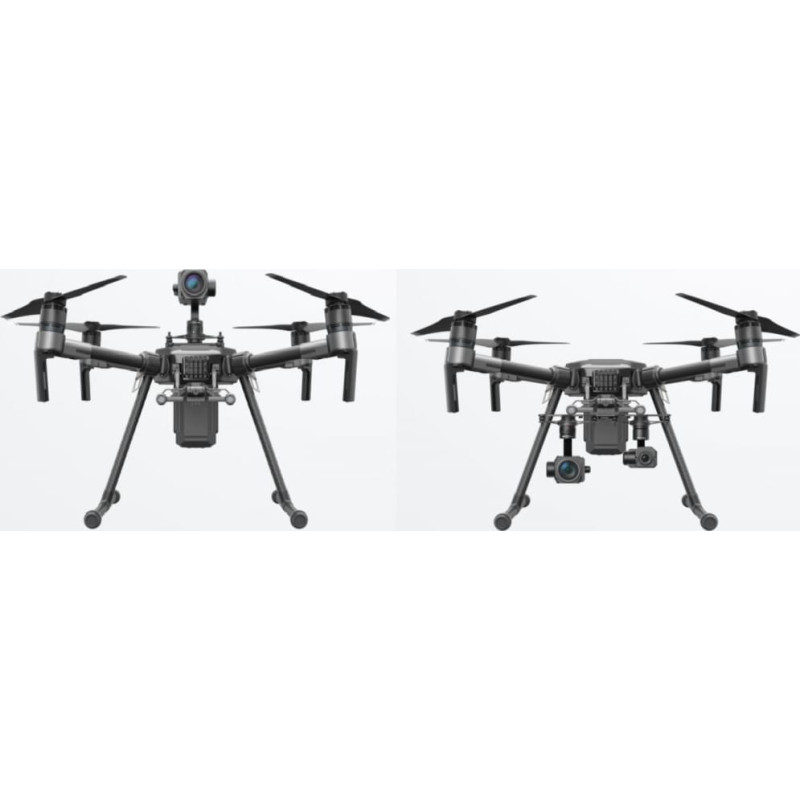

There are also several options of gimbal mounts and cameras available for the M210. Gimbals can be mounted as a single downward facing gimbal, dual downward facing gimbal and upward facing single gimbal. The options given by the different gimbal and camera combinations open the M210 up for use in for more applications than any other drone.

In addition to the cameras you can mount on the aircraft, a FPV camera is also featured on the front of the M210. This is to be used when controlling the aircraft.

Package Dimensions: 31.1×15.4×11.4inch (790×390×290mm)
Dimensions (unfolded): 34.9×34.6×14.9 inch (887×880×378 mm)
Dimensions (folded): 28.2×8.7×9.3 inch (716×220×236 mm)
Folding Method: Folded Inward
Diagonal Wheelbase: 25.3 inch (643 mm)
Number of Batteries: 2
Weight (TB50): Approx.3.84kg (with two standard batteries )
Weight (TB55): Approx.4.57kg (with two standard batteries )
Max Takeoff Weight: 6.14KG
Max Payload (2 TB50): Approx.2.3kg (with two standard batteries )
Max Payload (2 TB55): Approx.1.57kg (with two standard batteries )
Hovering Accuracy (during safe flights):
Vertical: ±0.5，Downward Vision System enabled: ±0.1
Horizontal: ±1.5，Downward Vision System enabled: ±0.3
Max Angular Velocity: Pitch: 300° /s；Yaw:150° /s
Max Pitch Angle (Dual Downward Gimbals): :
P Mode: 25°（Forward Vision System enabled: 25°）； A Mode: 25°；S Mode: 30°
Max Pitch Angle (Single Upward/Downward Gimbal):
P Mode: 30°（Forward Vision System enabled: 25°）； A Mode: 30°；S Mode: 35°
Max Ascent Speed: 16.4 ft/s (5 m/s)
Max Descent Speed: Vertical: 9.8 ft/s (3 m/s)
Max Speed(Dual Downward Gimbals):
S Mode: 40.3mph (64.8kph)
P Mode: 38mph (61.2kph)
A Mode: 38mph (61.2kph)
Max Speed (Single Upward/Downward Gimbals):
S Mode: 51.4mph (82.8kph)
P Mode: 38mph (61.2kph)
A Mode: 51.4mph(82.8kph)
Max Service Ceiling Above Sea Level: 1.86 miles (3000 m)
Max Wind Resistance: 39.4 ft/s (12 m/s)
Max Flight Time(No Payload, with TB50): 27min
Max Flight Time(No Payload, with TB55): 38min
Max Flight Time(Full Payload, with TB50): 13min
Max Flight Time(Full Payload, with TB55): 24min
Motor Model: DJI 3515
Propeller Model: 1760S
Retractable Landing Gear: Standard
Operating Temperature : -4° to 113° F (-20° to 45° C)
IP Rating: IP43

GIMBAL INSTALLATION
Downward Gimbal Mount: Supported
Upward Gimbal Mount: Supported
Downward Dual Gimbal : Supported

CHARGER
Model: IN2C180
Voltage: 26.1 V; Rated Power: 180 W

FORWARD VISION SYSTEM
Obstacle Sensing Range: 2.3-98.4 feet (0.7-30 m)
FOV: Horizontal 60°，Vertical 54°
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)

DOWNWARD VISION SYSTEM
Velocity Range: <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)
Altitude Range: <32.8 feet (10 m)
Operating Range: <32.8 feet (10 m)
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)
Ultrasonic Sensor Operating Range: 0.33-16.4 feet (10-500 cm)
Ultrasonic Sensor Operating Environment: Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

GIMBALS
Compatible Gimbals: Zenmuse X4S, Zenmuse X5S, Zenmuse Z30, Zenmuse XT

BATTERY
Model: TB50 4280 mAh LiPo 6S
Voltage: 22.8V, Energy: 97.58 Wh
Net Weight: Approx. 520 g
Operating Temperature: -20°C to 45° C
Storage Temperature: Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature: 41° to 104° F (5° to 40° C)
Max Charging Power: 180 W
Model: TB55 7660 mAh LiPo 6S
Voltage: 22.8V, Energy: 176.93Wh
Net Weight: Approx. 885 g
Operating Temperature: -4° to 113° F (-20° to 45° C)
Storage Temperature: Less than 3 months: -20° C to 45° C
More than 3 months: 22° C to 28° C
Charging Temperature: 41° to 104° F (5° to 40° C)
Max Charging Power: 180 W

DJI GO 4 APP
Name: DJI GO 4
Mobile Device System Requirements: iOS 9.0 or later,Android 4.4.0 or later
Supported Mobile Devices:
iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus.
Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.
*Support for additional devices available as testing and development continues.

UPWARD INFRARED SENSOR
Obstacle Sensing Range: 0-16.4 feet (0-5 m)
FOV: ±5°
Operating Environment: Large, diffuse and reflective obstacles (reflectivity >10%)

CENDENCE
Type: GL800A
Operating Frequency: 2.400-2.483 GHz; 5.725-5.825 GHz
Max Transmitting Distance (unobstructed, free of interference):
2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
EIRP:
2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Power Supply: Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)
Intelligent Battery: 4923 mAh LiPo
Charging: DJI charger
Output Power: 20 W (supplying power to DJI CS550 monitor), 12 W (without supplying power to monitor)
Video Output Ports: USB, HDMI, SDI
USB Supply Power: iOS: 1 A, 5.2 V (Max); Android: 1.5 A, 5.2 V (Max)
Dual User Capability: Master-and-Slave connection
Operating Temperature: -4 ° to 104 °F (-20 ° to 40 °C)
Storage Temperature: Less than 3 months: -4 ° to 113 °F (-20 °to 45 °C)
More than 3 months: 72 °to 82 °F (22 °to 28 °C)
Charging Temperature: 32 ° to 104 °F (0 °to 40 °C)
Charging Time: About 2 hours and 24 minutes (using a 180 W charger)
Supply Power Time: About 4 hours (only Master remote controller function enabled and without supplying power to monitor)
Weight: 1041 g
