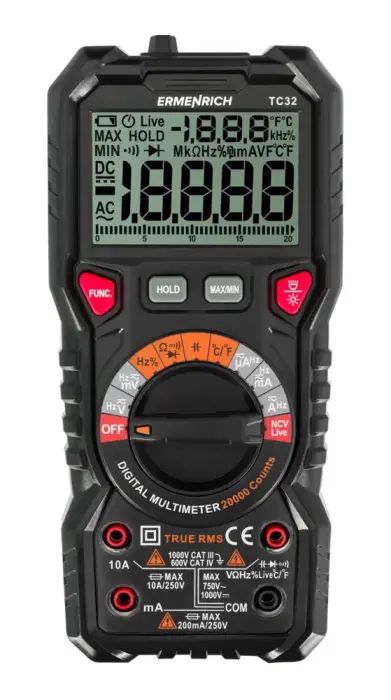

The Ermenrich Zing TC32 digital multimeter comes in handy in all situations where you need to measure amperage, voltage, and resistance as well as frequency, capacitance, and duty cycle. A thermocouple-based sensor measures the temperature. This multimeter is designed for checking the elements of electrical equipment, testing electrical equipment and devices as well as for the maintenance of electrical networks. The Ermenrich Zing TC32 can be used by professional users as well as beginners thanks to its wide functionality.
In addition to taking measurements, the multimeter can perform various tests: diodes testing, checking networks for short circuits or open circuits, locating hidden wiring, live outlets, and detecting the phase. The measurement results are displayed on the screen as a digital reading and a graphic scale. The screen has a backlight for low-light conditions and the hold function allows you to keep the last measurement on the screen.

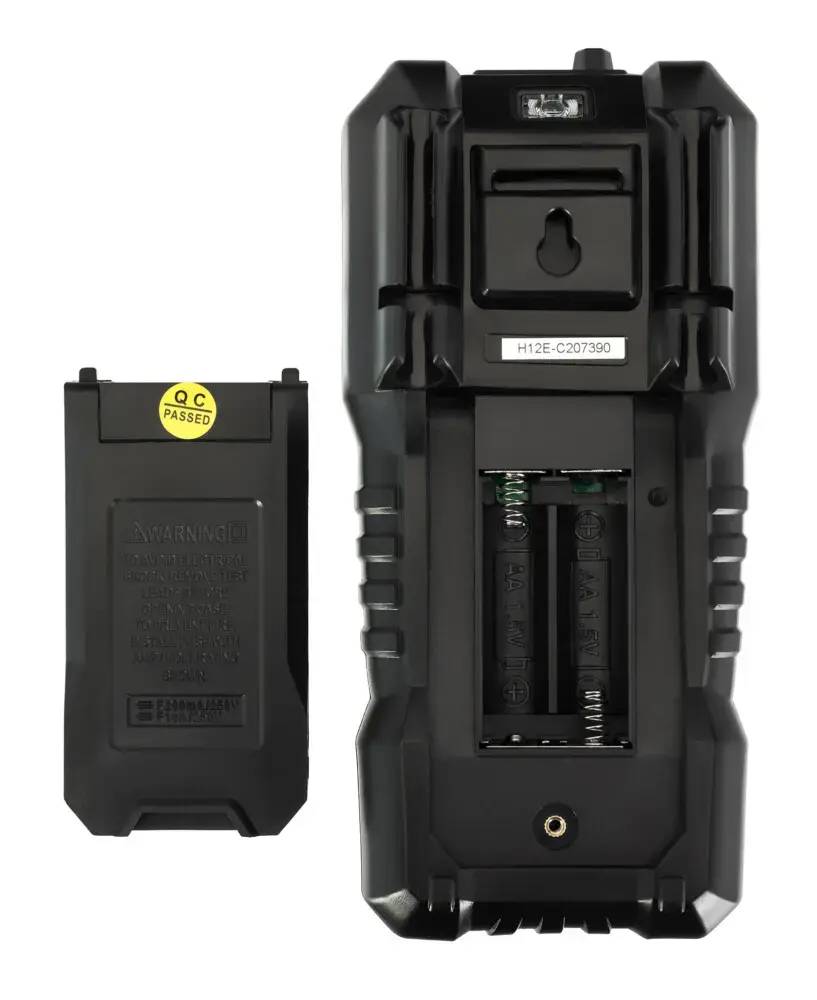

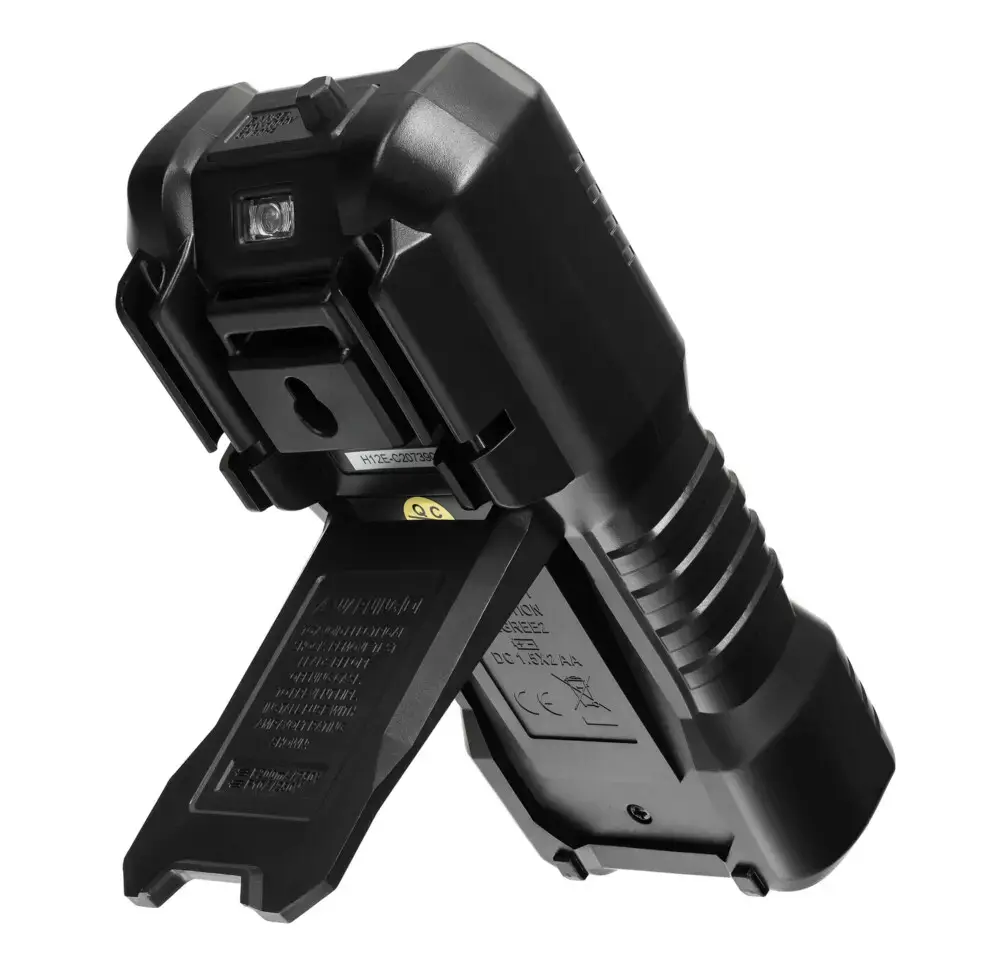

The Ermenrich Zing TC32 multimeter is a compact and lightweight device that fits in your pocket. The device is powered by batteries. When the batteries are low, the device will warn you. To save power, there is an auto-off function. There is a built-in flashlight.
Key features:
- True RMS measurements
- Measures voltage, amperage, resistance, frequency, capacitance, duty cycle, temperature
- Functions: diode test, phase detector, non-contact voltage detector
- Digits and a graphic scale on the screen, hold function
- Auto-off, built-in flashlight, powered by batteries

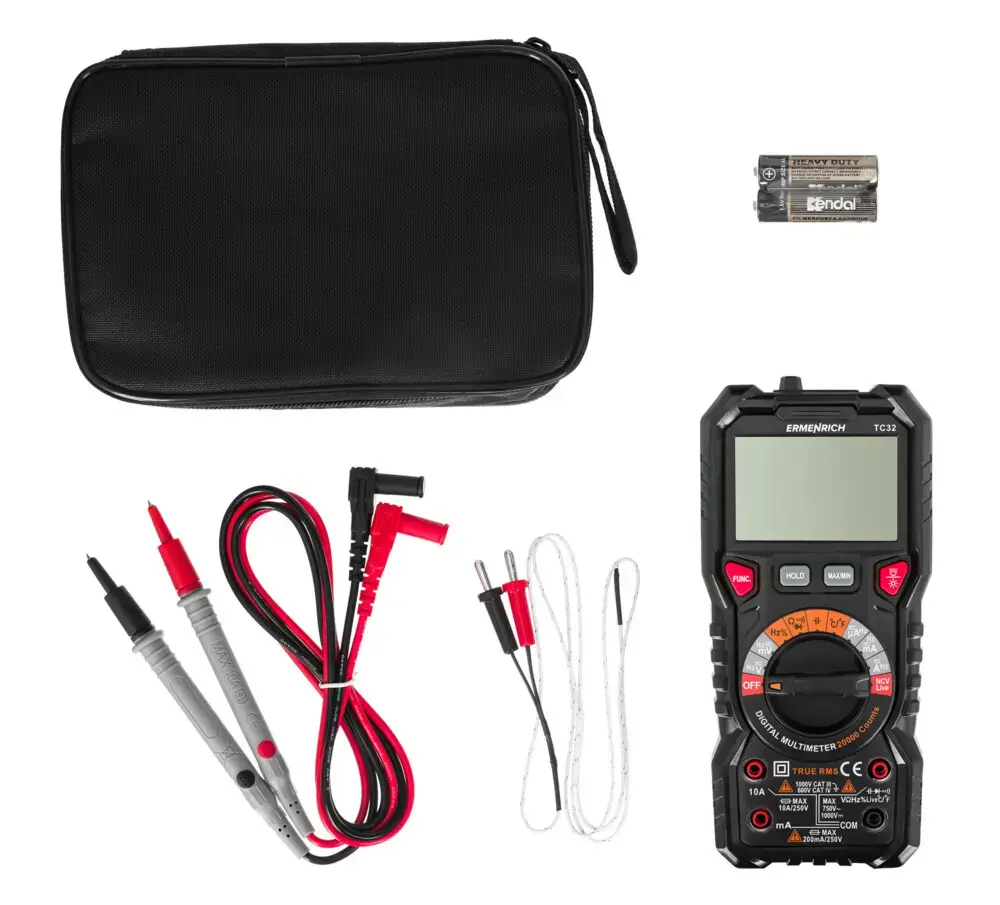

The kit includes:
- Digital multimeter
- Probes
- Pouch
- User manual and warranty card
BrandErmenrichWarranty5 летEAN5905555017686Package size (LxWxH)21x13x6 cmShipping Weight0.55 kgDiodes testyesNon-contact voltage detection (NCV)yesTrue RMS yesHold functionyesLimit value function (Min/Max)yesPhase detector (Live)yesGraphic scaleyesContinuity testyesDisplay counts20000Selection of the measuring limitautomaticBasic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocoupleDC voltage measuring limit200mV/2V/20V/200V/1000V: error ±(0.08%+5)AC voltage measuring limit200mV/2V/20V/200V/750V: error ±(1.0%+25)DC current measuring limit200µA/2000µA/20mA/200mA: error ±(0.5%+5), 10A: error ±(1.0%+15)AC current measuring limit200µA/2000µA/20mA/200mA: error ±(1.0%+25), 10A: error ±(1.5%+25)Resistance measuring limit200Ω/2kΩ/20kΩ200kΩ/2MΩ: error ±(1.0%+15), 20MΩ/100MΩ: error ±(3.0%+25)Capacity measuring limit20nF/200nF/2µF/20µF/200µF/2mF: error ±(4.0%+50)Frequency measurement limits200Hz/2kHz/20kHz/200kHz/2MHz/10MHz: error ±(1.0%+10)Duty cycle measurement range1–99%: error ±(3.0%+30)Overvoltage categorycat. III (1000V) IV (600V)DisplayLCDDisplay backlightyesFlash lightyesSafety standardsEN61010-1,-2-030; EN61010-2-033; EN61326-1Operating temperature range,°C−20... +1000 (−4… +1832): error ±(1.0%+2)Power supply2 AA batteries (not included)Low battery status indicatoryesAuto power offyes
