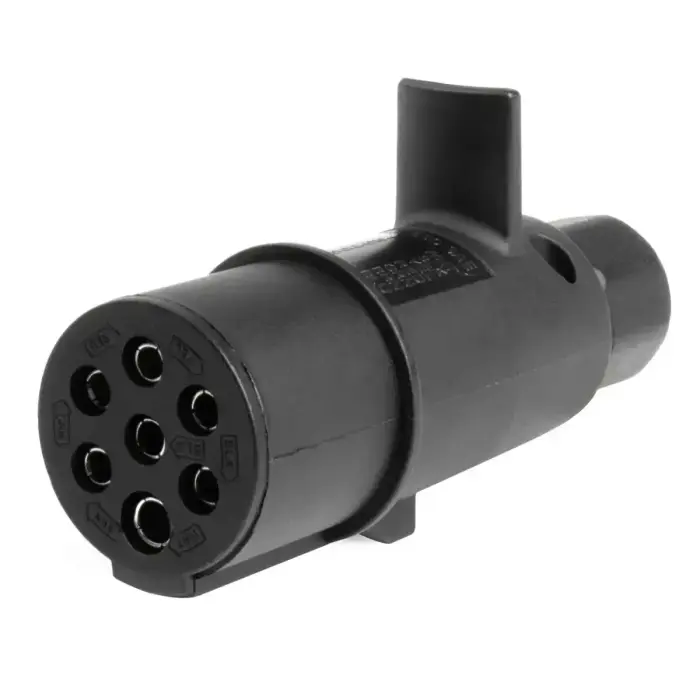

Trailer plug 24V N-type

7-pin N-type 24V plastic trailer plugUniversal 7-pin N-type plug designed to connect and supply the 24V electrical system of semi-trailers, heavy-duty trailers and other heavy-duty vehicles.Provides a permanent connection between the electrical system of the semi-trailer and the towing vehicle, guaranteeing uninterrupted operation of available functions (e.g. lighting).The 7-pin 24V connector is currently the most common system used to implement electrical connections between trailers and tractors in normal applications. Key features:Universal, fits any type of trailer / semi-trailer Easy and quick installation on the vehicle cable Durable, damage-resistant and weatherproof hard plastic housing Metal contacts that guarantee a correct electrical connection under all conditions Configuration of the contacts prevents confusion between N and S connectors Cable entry through screwed gland Thick gasket to protect the interior from dirt Specifications:type: 7-pin N-type trailer plug for cable Voltage: 24V Plug: 7-pin type N, female connector without pin (black) Casing: solid plastic Connection: twisted-pair Max cable diameter: 9.1 mm Colour: black Plug length: 110 mm Connector diameter: 37 mm Weight: 120 g
