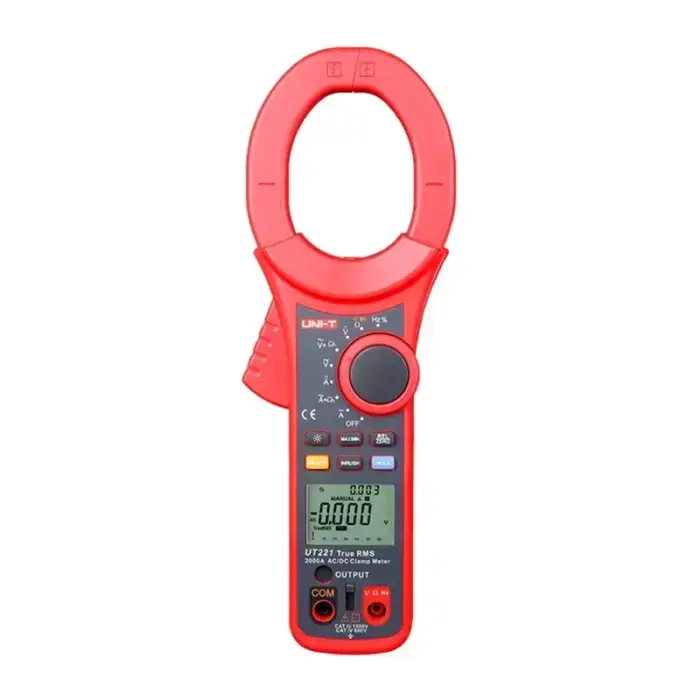

Uni-T UT221 Digital Current Meter

Uni-T UT221 Digital Clamp Meter The Uni-T UT221 is an advanced clamp meter from the UT220 series, designed to measure high AC and DC currents up to 2000 A. Built for professional applications requiring precision, a wide range of functions, and convenient operation when measuring high current values. Featuring a jaw opening of 63 mm, automatic range switching, and a high maximum reading, this model is ideal for demanding tasks. Greater capabilities and a wider range of functions The UT221 measures AC/DC current up to 2000 A, AC voltage up to 750 V, DC voltage up to 1000 V, resistance up to 66 MΩ, and frequency up to 20 MHz. It offers a maximum reading of 6000, True RMS for AC voltage and current, duty cycle measurement, low-pass filter, inrush current measurement, relative mode, MIN/I-OUT functions, and a 66-segment analog bar graph for observing measurement changes. Ready for more demanding tasks Includes diode test, continuity buzzer, Data Hold and MAX functions, full icon set, and low battery indicator. Powered by a 9V 6F22 battery, weighing 726 g, with dimensions of 298 × 107 × 47 mm. Included: - Clamp meter - Battery x1 - Test leads - Output cable - Carrying case - User manual Specifications: - Manufacturer: Uni-T - Model: UT221 - Type: True RMS clamp meter - AC current: 2000A ±(2.5%+5) - DC current: 2000A ±(2.5%+5) - AC voltage: 750V ±(1.2%+5) - DC voltage: 1000V ±(0.8%+1) - Resistance: 66MΩ ±(1%+2) - Frequency: 20MHz ±(0.1%+3) - Duty cycle: 10% ~ 90% - Maximum reading: 6000 - Functions: True RMS, diode test, continuity test, Data Hold, MAX, Relative mode, low-pass filter, inrush current measurement, analog bar graph, automatic range switching, low battery indicator - Jaw opening: 63 mm - Power supply: 9V battery (6F22) - Display: 43 x 30 mm - Dimensions: 298 x 107 x 47 mm - Weight: 726 g - Certifications: CE, UKCA, cETLus
