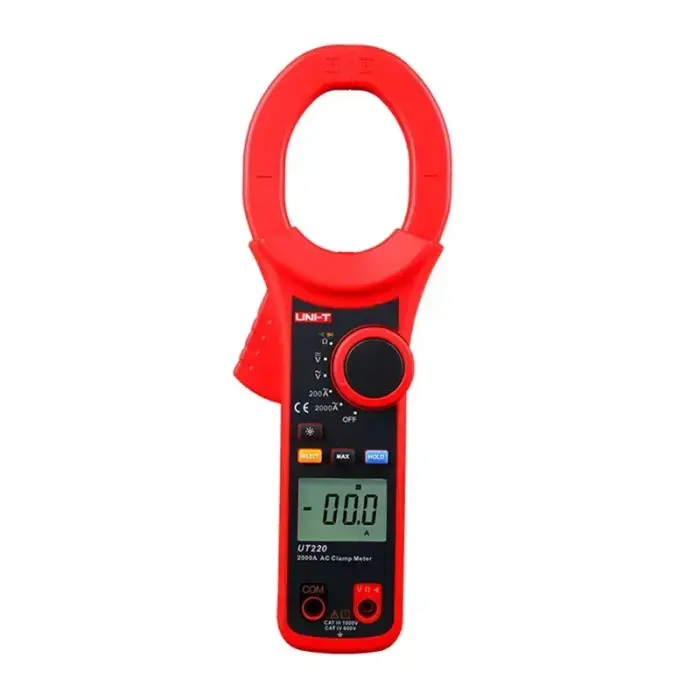

Uni-T UT220 Digital Current Meter

Uni-T UT220 Digital Clamp Meter is designed to measure high AC currents up to 2000 A. The device is engineered for stable, safe, and reliable operation, making it well-suited for professional applications requiring high current measurements. Key features include a 63 mm jaw opening, automatic range switching, and an easy-to-read display. Basic functions include AC current up to 2000 A, AC voltage up to 750 V, DC voltage up to 1000 V, and resistance up to 20 MΩ. It also features a 2000-count maximum reading, diode test, continuity buzzer, Data Hold, and MAX functions for practical daily diagnostics. The meter includes a full set of display icons, a low-battery indicator, and suitable input impedance for improved comfort and safety. Powered by a 9V 6F22 battery, it weighs 389 g and measures 298 × 107 × 47 mm. Included in the box: - Clamp meter - Battery x1 - Test leads - Carrying case - User manual Specifications: - Manufacturer: Uni-T - Model: UT220 - Type: Clamp meter - AC current: 2000A ±(2.5%+5) - AC voltage: 750V ±(1.2%+5) - DC Voltage: 1000V ±(0.8%+1) - Resistance: 20MΩ ±(1%+2) - Maximum Reading: 2000 - Functions: Diode test, continuity test, Data Hold, MAX, auto-ranging, low battery indicator - Jaw Opening: 63 mm - Power supply: 9V battery (6F22) - Display: 43 x 30 mm - Dimensions: 298 x 107 x 47 mm - Weight: 389 g - Certifications: CE, UKCA, cETLus
