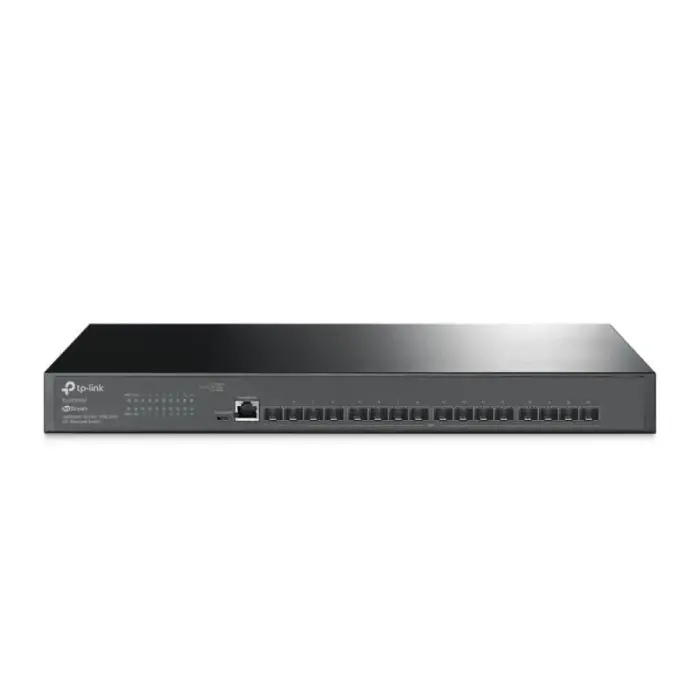

TP-Link JetStream TL-SX3016F Managed L2+/L3 Network Switch Black

Name: TP-Link JetStream TL-SX3016F Managed L2+/L3 Network Switch Black
Brand: TP-Link
SKU: A0040775
Price: 1180.45 EUR
Availability: InStock

1180.45 € / tk

Tarnija laos: >5

Tarne

Poest järeletulemine

04.11.2026 *

Tasuta

Pakiautomaat

05.11.2026 *

3.01 €

Kohaletoimetamine kulleriga

09.11.2026 *

12.09 €

* Kättesaamise kuupäev on ligikaudne.

Kiire tarne

Kuller ja pakiautomaadid

Tootja garantii

Ametlik turustaja

Toote tagastus

14-päevane tagastus

Konsultatsioon

+371 27 879 580

Kirjeldus

Design
- Product color: Black
- LEDs: Yes
- Rack mounting options: Yes
Power
- Power consumption (max): 32.74 W
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Power source: AC
- Power supply included: Yes
Weight and dimensions
- Product width: 440 mm
- Product height: 44 mm
- Product depth: 220 mm
Security
- Encryption/Security
  - SSH-2
  - SSL/TLS
  - HTTPS
  - SSH
- MAC address filtering: Yes
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Supports SSH/SSL: Yes
- DHCP functions
  - DHCP relay
  - DHCPv6 snooping
  - DHCP server
  - DHCPv6 client
  - DHCP snooping
- Static Port Protection: Yes
- Queue planning algorithms
  - WRR+SP
  - Weighted Round Robin (WRR)
  - SP
- Loop protection: Yes
- BPDU Filtering/Protection: Yes
- Authentication type: AAA, TACACS+
- IP-MAC-Port Binding: Yes
- Authentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Management features
- Quality of Service (QoS) Support: Yes
- Website management: Yes
- Cloud-managed: Yes
- Switch Layer: L2+/L3
- MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
- Switch type: Managed
- Configuring Location Settings (CLI): Yes
- ARP Inspection: Yes
- System Event Report: Yes
- Traffic Classification: Yes
Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 45 °C
- Permissible relative humidity: 5 - 90%
- Heat emission: 111.71 BTU/h
Network
- Communication standards
  - IEEE 802.3x
  - IEEE 802.1D
  - IEEE 802.1ab
  - IEEE 802.1s
  - IEEE 802.1Q
  - IEEE 802.1w
  - IEEE 802.1x
  - IEEE 802.3ad
  - IEEE 802.1p
- 10G Support: Yes
- Number of VLANs: 4000
- VLAN support: Yes
- Port Mirroring: Yes
- Traffic Growth Control: Yes
- Flow Control Support: Yes
- Frequency Limit: Yes
- Head-of-line (HOL) blocking: Yes
- IP forwarding: Yes
- Spanning Tree Protocol: Yes
- Connection Aggregator: Yes
- Virtual LAN Features
  - Voice VLAN
  - Tagged VLAN
  - Private VLAN
  - Protocol-based VLAN
Packaging data
- Weight with packaging: 3.7 kg
- Package width: 528 mm
- Packaging type: Box
- Package height: 100 mm
- Package depth: 336 mm
Package contents
- Quick Start Guide: Yes
- Wires: Alternating Current
- User Manual: Yes
- Hook mounting kit: Yes
Protocols
- IPv4 and IPv6 features
  - IPv6 Telnet
  - IPv6 ping
  - IPv6 tracert
- Management protocols: SNMPv1/v2c/v3, SNTP
Ports and interfaces
- Power connector: DC-in jack
- Basic Ethernet Switching RJ-45 Ports Type: No
- Console port: RJ-45/micro-USB
- Number of SFP+ Module slots: 16
Logistics data
- Harmonized System (HS) code: 85176990
Data transfer
- Routing/switching capacity: 320 Gbit/s
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 24 MB
- Address table size: 32000 entries
- Static Route: Yes
- Jumbo Frames Expansion: 9000
- Number of rounds: 8
- Forwarding speed: 238.08 Mpps
Power over Ethernet (PoE)
- PoE Support: No
Multicast functions
- Multicast Support: Yes
- Multicast Listener Discovery (MLD) snooping: Y
