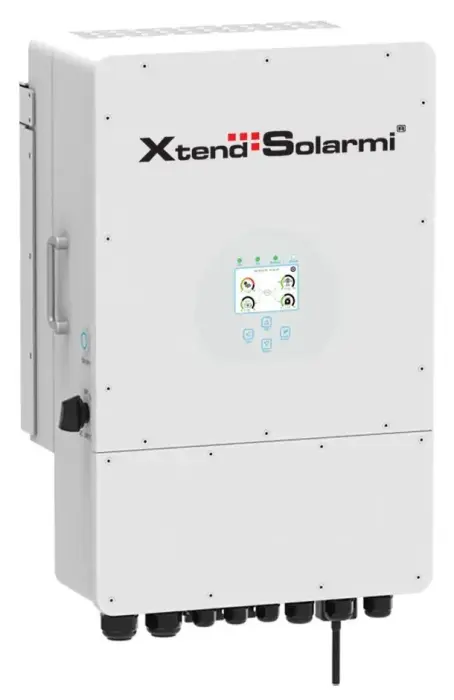

Solarmi SUN-12K-SG04LP3-EU

Hybrid 12 kW inverter with limiter, three phase 400 V.

• 100% unbalanced output, each phase, max. output up to 50% rated power
• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 240A
• DC couple and AC couple to retrofit existing solar system
• Support storing energy from diesel generator

The package includes a Wi-Fi dongle, a sensor for measuring power consumption and a data logger. Electricity meter is not included.

SPECIFICATIONS

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range: 40-60 V
Max. Charging Current: 240 A
Max. Discharging Current: 240 A
Charging Curve: 3 Stages / Equalization
External Temperature Sensor: yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS

PV String Input Data
Max. DC Input Power: 15600 W
Rated PV Input Voltage: 550 V (160-800 V)
MPPT Range: 200-650 V
Full Load DC Voltage Range: 350-650 V
Start-up Voltage: 160 V
PV Input Current: 26 A + 13 A
Max. PV ISC: 34 A + 17 A
Number of MPPT: 2
Strings per MPPT: 2 + 1

AC Output Data
Rated AC Output and UPS Power: 12000 W (max. 13200 W)
Peak Power (Off-Grid): 2 times of rated power, 10 s
AC Output Rated Current: 18,2 A (max. 27,3 A)
Max. Continuous AC Passthrough: 45 A
Output Frequency and Voltage: AC 220/380 V, AC 230/400 V (50/60 Hz), 3L/N/PE

Efficiency: 97 % (MPPT 99,9 %)
Protection Degree: IP65
Size: 700 x 422 x 279 mm
Weight: 33,6 kg
SVT code for subsidy programme in the Czech Republic: SVT30773, SVT32119
