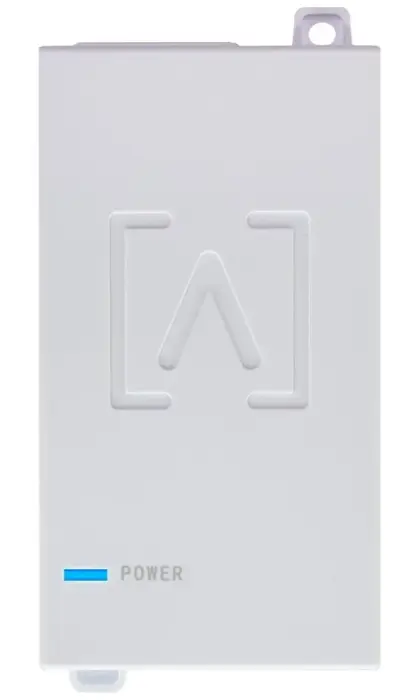

ALTA PoE Injector 30W

Alta Labs PoE Injector 30 W

Compact PoE injector for powering network devices via Ethernet cable.

This professional PoE injector enables powering compatible network devices directly through an Ethernet cable, eliminating the need for a separate power supply. It is optimized for AP6 and AP6-Pro Wi-Fi 6 Access Points, but can be used with any compatible device.

The injector offers two operating modes – when the LAN port is connected, it works as a standard PoE injector with data transfer; when the LAN port is disconnected, it allows powering the access point in mesh mode. Its compact size and wall-mounting option make it an ideal solution for both home and commercial installations.

• Output voltage 48 V with current up to 0.63 A for reliable PoE device powering
• Two gigabit Ethernet RJ-45 ports for LAN connection and PoE output
• Universal power adapter for 100–240 V AC, 50–60 Hz
• Compact dimensions 113.6 × 53.5 × 33.5 mm and weight only 145 g
• White LED indicator for proper power and device functionality
• Wall-mounting option for space-saving and aesthetic installation
• CE, FCC, and IC certifications for commercial and residential use

Flexible operating modes
The LAN port connects to a network router or switch, enabling both data transfer and power delivery. When the LAN port is disconnected, the device works only as a power source for access points in mesh mode.

Operating conditions and reliability
The injector is designed for operation in a temperature range of 0 to 40 °C with relative humidity of 35–90% non-condensing. Storage temperature from -30 to 70 °C ensures long-term durability.

Installation and mounting
Installation requires two Cat5 or higher Ethernet cables, a Phillips screwdriver, and a drill with bit for wall mounting. Mounting screws and wall plugs are not included.

BASIC SPECIFICATIONS

Network interface: Ethernet
Ports: 2× GbE RJ-45
Input voltage: 100–240 V AC
Frequency: 50–60 Hz
Input current: 0.7 A (max.)
Output voltage: 48 V
Output current: 0.63 A
LED indicator: white
Dimensions: 113.6 × 53.5 × 33.5 mm
Weight: 145 g
Operating temperature: 0 to 40 °C
Certifications: CE, FCC, IC
