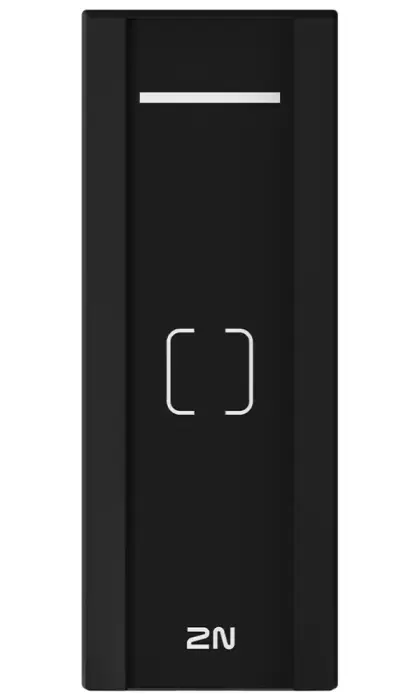

2N Access Unit M RFID 13.56 MHz, PICard compatible, NFC

2N Access Unit M RFID 13.56 MHz

The slim 2N Access Unit M access reader combines the functions of a controller and reader in a single device with support for 13.56 MHz RFID and NFC technology.

The reader is designed for access control systems in office buildings and other facilities. A single UTP cable is sufficient for both connection and power supply – the device supports PoE 802.3af. Thanks to its slim design (133 × 50 × 27 mm), it can be installed even on narrow door frames.

The reader supports MIFARE DESFire EV2/EV3 cards encrypted with 2N PICard technology to protect against access card cloning. All decision-making logic is integrated directly in the device – the reader operates without the need for permanent server communication. Unit management is handled via a secure web interface or 2N Access Commander software.

• 13.56 MHz RFID card reader with support for ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX) and NFC (2N Mobile Key) standards.
• Integrated controller and reader in one – decision-making occurs locally without server dependency.
• Power and data transmission over a single UTP cable (PoE 802.3af, class 0–12.95 W); Cat-5e or better cabling recommended.
• IP54 and IK07 ratings allow installation both indoors and outdoors; the tempered glass front panel withstands daily use.
• Ethernet pigtail 2.9 m in length (RJ-45 male) with Auto-MDIX for easy installation in metal door frames and suspended ceilings.

Inputs and Outputs
The device features two inputs in passive or active mode (–30 V to +30 V DC). A protective switch is automatically included in the unit. Audio signalling is provided by an integrated buzzer (1 W/8 Ω).

Network Protocols and Security
The reader supports DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS and Syslog protocols. Communication is secured with RSA-1024 and AES-128 encryption.

Mounting Accessories
Separately supplied mounting boxes are available for installation: flush-mount installation box 9161210 (127 × 68 × 40 mm) and surface-mount installation box 9161220 (134 × 52 × 27 mm).

BASIC SPECIFICATIONS

Power supply: PoE 802.3af (class 0–12.95 W) or 12 V/1 A DC
LAN interface: 10/100BASE-TX, Auto-MDIX, RJ-45 male (pigtail 2.9 m)
Recommended cabling: Cat5e or better
RFID frequency: 13.56 MHz
Supported 13.56 MHz standards: ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N Mobile Key), MIFARE DESFire EV2/EV3 (2N PICard)
Active switch output: 8–12 V DC, max. 600 mA
Passive switch: NO/NC switching contacts, up to 30 V/1 A AC/DC
Inputs: 2 inputs, passive/active mode (–30 V to +30 V DC)
Audio: buzzer, 1 W/8 Ω
Supported protocols: DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
Housing: tempered glass with durable plastic
Protection rating: IP54 and IK07
Operating temperature: –40 to +60 °C
Operating humidity: 10–95% (non-condensing)
Weight: 490 g
