EZVIZ solar panel 5W

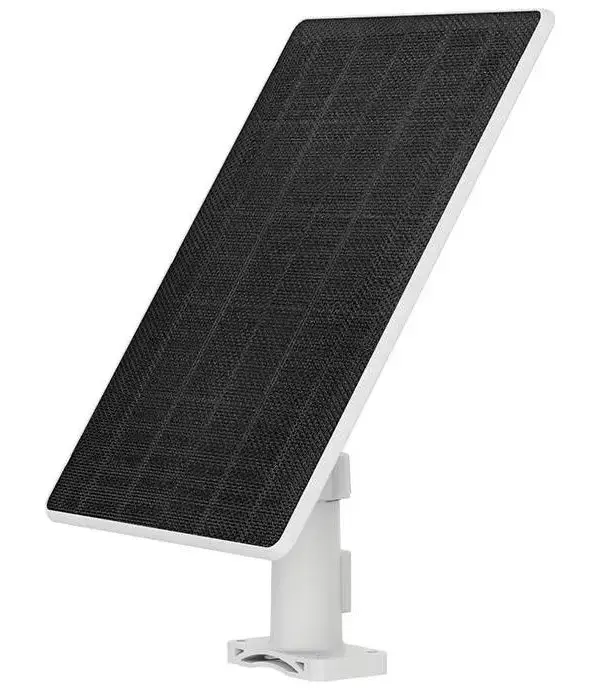

EZVIZ 5 W Solar Panel

Solar charging panel for continuous power supply of EZVIZ outdoor security cameras with eco-friendly operation.

This 5W solar panel is designed to charge all EZVIZ outdoor battery cameras equipped with a USB-C connector. It utilizes high-performance monocrystalline silicon solar cells with industry-leading conversion efficiency of up to 23.5%, ensuring high energy production capacity even in normal sunlight conditions.

The panel features a 360° rotating mount and a 3-meter cable, allowing flexible installation on walls or poles and optimal adjustment towards the sun. The durable construction with IP65 rating and stainless steel screws withstands all weather conditions including rain, dust, snow, and direct sunlight.

• High conversion efficiency of up to 23.5% thanks to monocrystalline silicon cells
• 5 W charging power for continuous power supply of EZVIZ battery cameras
• 360° rotating mount and 3-meter cable for flexible installation and optimal sunlight capture
• Durable IP65 design with stainless steel screws for outdoor use in any weather
• USB-C connector compatible with all EZVIZ outdoor battery cameras

Efficient Charging
Under standard conditions (1000 W/m², 25 °C, AM1.5) and camera operation of 30 minutes per day, only 18 minutes of sunlight is sufficient for all-day camera operation. The total charging time for the EB8 camera with a capacity of 37 Wh + 38 Wh is 6.25 hours, which ensures up to 40 hours of operation.

Easy Installation
The panel can be easily mounted on a wall using the included screw set or on a pole. The adjustable mount allows precise positioning for maximum sunlight capture throughout the day.

Package Contents
5 W solar panel, adjustable mounting bracket, screw set, regulatory information, quick start guide.

KEY SPECIFICATIONS

Solar cell type: monocrystalline silicon
Voltage at maximum power: 5.7 V
Maximum power: 5 W
Conversion efficiency: ≥ 23.5%
Current at maximum power: 877 mA
Open circuit voltage: 6.9 V
Short circuit current: 0.92 A
Interface: USB-C
Cable length: 3 m
Protection rating: IP65
Operating temperature: -20 to +60 °C, humidity max. 90% (non-condensing)
Dimensions: 210 × 154 × 33 mm
Weight: 286 g
Certifications: CE, REACH, WEEE, RoHS
