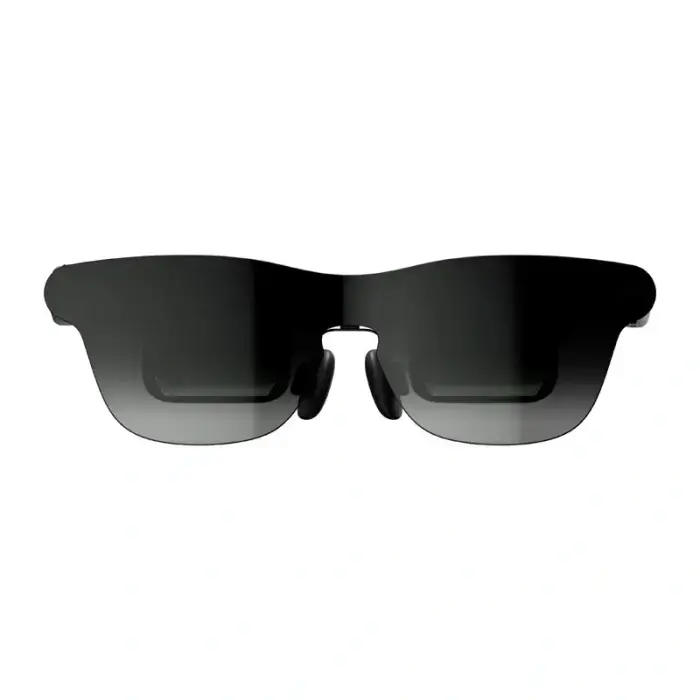

AR glasses RayNeo GT Max

RayNeo GT Max AR Glasses

The RayNeo GT Max AR Glasses in size M let you watch movies, play games, and enjoy multimedia on a virtual screen with a diagonal of up to 307". They feature 5.5th-generation Dual-Layer Micro-OLED displays, a 59° field of view, a 120 Hz refresh rate, Dolby Vision support, and a 3DoF spatial tracking system, which tracks head movements along three axes. Users can choose a virtual screen size of 227", 267", or 307" at a simulated viewing distance of 6 meters, and the entire device weighs 78 g.

Detailed and Smooth Micro-OLED Image

The Vision 4000 Display Chip handles real-time image processing, color enhancement, and the rendering of bright and dark areas of a scene. The RayNeo GT Max supports SDR, AI HDR, and Dolby Vision modes, and its 200,000:1 contrast ratio, 1,200 nits peak brightness, and Delta E < 2 color accuracy help deliver a detailed and natural-looking image. Users can also choose from Standard, Movie, Eye Care, and Read modes, and adjust the brightness and size of the displayed image depending on the type of content being viewed.

Motion Tracking and Multiple Display Modes

The Zone 360 system handles 3DoF spatial tracking and allows the virtual screen’s behavior to be adapted to the current situation. In Stable mode, the image is stabilized during movement; Pinned mode allows you to position the screen at a specific location in space; and Follow mode causes the image to track the user’s head movements. The headset also allows you to switch between 2D and 3D modes, so you can adjust the display to suit the supported content.

Sound developed in collaboration with Bang & Olufsen

The RayNeo GT Max’s quad-speaker system was developed in collaboration with Bang & Olufsen and features a six-magnet design. The surface area of the speaker units has been increased by 38% and low-frequency sensitivity by 5 dB, while the directional design of the sound channels reduces sound dispersion by up to 80%. You can choose from Standard Audio, Whisper Audio, and Spatial Surround Audio modes, allowing you to tailor the sound profile to watching a movie, playing games, or wearing the glasses around other people.

Fit and Wide Compatibility

The RayNeo GT Max is available in variants tailored to different interpupillary distances (IPD): Small for IPD under 64 mm, Medium for 64–67 mm, and Large for values over 67 mm. The glasses can be connected directly to compatible devices that support DisplayPort via USB-C, and with the appropriate adapters, to other video sources as well, including consoles that use HDMI. The design does not require a built-in battery, as the glasses can be powered by the connected device, and the included prescription lens frame allows for the use of specially prepared lenses for people with vision impairments.

Included in the set

• RayNeo GT Max AR glasses
• Frame for prescription lenses
• Replaceable nose pads x 3
• Carrying case
• USB-C cable
• Glasses cleaning cloth
• User manual
• Service and Safety Instructions
• Non-slip temple pads x 4



ManufacturerRayNeoModelGT MaxWeight78 gSizeMOptical EnginePeacock Optical Engine 3.0 MaxDisplay technology5.5th-generation Dual-Layer Micro-OLEDField of view59°Virtual screen sizes227", 267", 307" at a distance of 6 mPeak brightness1,200 nitsRefresh rate120 HzColor gamut98% DCI-P3 / 145% sRGBColor accuracyDelta E < 2DimmingPWM 3840 HzSupported video standardsSDR, AI HDR, Dolby VisionPicture modesStandard, Movie, Eye Care, ReadSpatial modesStable Mode, Pinned Mode, Follow ModeSpatial tracking systemZone 360Tracking3DoF – three axes of head movementAudioQuad-speaker system developed in collaboration with Bang & OlufsenAudio design6 magnetsIncrease in speaker unit surface area38%Low-frequency sensitivity increase+5 dBSound leakage reductionup to 80%Audio ModesStandard Audio, Whisper Audio, Spatial Surround AudioIPD OptionsSmall 67 mmConnectivityUSB-C with DisplayPort supportPowerdirectly from the connected devicePrescription lens supportup to -10.00 D for myopia and up to -2.00 D for astigmatism
